Name: uPVC Sliding Doors EvolutionDrive 82
Brand: Salamander

Specifications
Description
Colours
Files to download
Recently viewed products
Similar products
Our realizations

Specifications

Brand	Salamander
Depth of the frame [mm]	194
Maximum thickness of the glazing unit [mm]	52
Profile thickness	Class A
Wind resistance	C2/B2
Water resistance	2A
Acoustic insulation	24 - 29 dB
Air permeability	Class 2

Specifications - Read more

Profile thickness

The walls of the window chambers have different thickness, which determines the class of the profile. The thickness of the profiles is defined by the PN-EN 12608: 2004 standard. Profiles can have three classes: A, B and C. This parameter specifies the wall thickness of the profiles. The Class A profiles have outer walls with a thickness of ≥ 2.8 mm. Class B ≥ 2.5 mm. The standard does not define any requirements for class C sections. Class A profiles are the best choice as they provide us with the best window insulation. However, while selecting the so- called “warm” windows, you should also pay attention to such elements as the number of chambers, gaskets, type of the fittings, warm edge spacer, and glazing unit.

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows and doors is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Air permeability

It is the measurement showing how easily air can pass through a window or a door. The European Standard regarding air permeability in windows and doors is EN 12207. It classifies windows or doors according to their capability to prevent air travel through the system. This capability is measured on a scale, from Class 1 (less tightness) to Class 4 (higher tightness). A window or a door system with a higher level of air tightness is more energy-efficient, as less heated air escapes through it.

Acoustic insulation (Rw)

Acoustic insulation coefficient. It determines the insulation of the sliding doors against noise from the outside. The unit of measurement is decibels (dB). This parameter is influenced by: the thickness of the glazing in the glazing unit, the use of PVB laminated glass or the use of an acoustic foil.

Depth of the frame

A very important dimension, saying a lot about sliding doors quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the sliding doors.

EvolutionDrive 82

The lift and slide door system, which enables the use of various glazing units for very good thermal and insulation parameters. A characteristic feature of the system is the possibility of equipping it with a low threshold, which allows the use of barrier-free construction solutions. The perfect solution for those who expect the best quality and high technical parameters.

EvolutionDrive 82 system is available with a low level threshold (50 mm) as standard. It is enough to lift and move the movable sash of the HST window so that both floor levels – external and internal – form one plane. Thanks to this, the space becomes open and elegant. A low level threshold guarantees effective thermal insulation, trouble-free movement for people with disabilities and small children and trouble-free maintenance thanks to removable profiles. It also allows for trouble-free modernisation of lift and slide doors.

On request, there is an additional option available: a 50 mm level threshold with a linear drainage. It is an additional gutter placed on the outer side of the sliding system, that helps to effectively drain even large amounts of rainwater and get rid of accumulated impurities, such as: leaves, sticks or small twigs.

EvolutionDrive 82 – benefits

Maximum sash dimensions: 3000 mm x 2500 mm
Fittings – lift&side system: up to 180 kg
Sash width: 82 mm
Window frame installation depth: 194 mm
Large dimensions of the HST uPVC sliding system (over 6 meters of width) and stable construction
The possibility to install wide glazing units
Narrow width of profiles, 5-chamber construction and low embedding for the maximum amount of sunlight in the rooms
A low level threshold of 50 mm as standard
Equipped with an additional bolt in the middle seal, both in the fixed and the sliding leaf – to ensure safety and prevent any intrusion

Price list

“The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include changes in colours, accessories, dimensions, etc. Each change affects the final price of the product. The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

One active-leaf door

Size:

3000 x 2100

Price from:
- Double-glazed

  € 3593 net
- Triple-glazed

  € 4406 net
One active-leaf door

Size:

4000 x 2100

Price from:
- Double-glazed

  € 4412 net
- Triple-glazed

  € 5577 net

Colours

SAL 03

SAL 11

SAL 18

SAL 19

SAL 21

SAL 25

SAL 26

SAL 27

SAL 33

SAL 37

SAL 39

SAL 41

SAL 42

SAL 43

SAL 50

SAL 51

SAL 52

SAL 55

SAL 59

SAL 67

SAL 69

SAL 71

SAL 72

SAL 73

SAL 74

SAL 78

SAL 84

SAL 87

SAL 88

SAL 90

SAL 92

SAL 93

SAL 94

SAL 98

SAL 107

SAL 108

SAL 109

SAL 110

SAL 111

SAL 112

SAL 113

SAL 115

SAL 116

Show all (43)

Files to download

EVOLUTIONDRIVE 82 H8050 - H8600_horizontal

EVOLUTIONDRIVE 82 H8050 - H8600_vertical

EVOLUTIONDRIVE 82 H8050 - H8600_vertical2

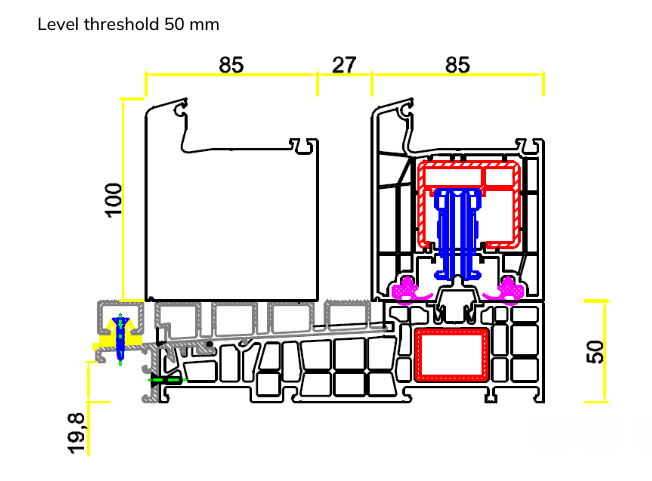

Level threshold 50 mm

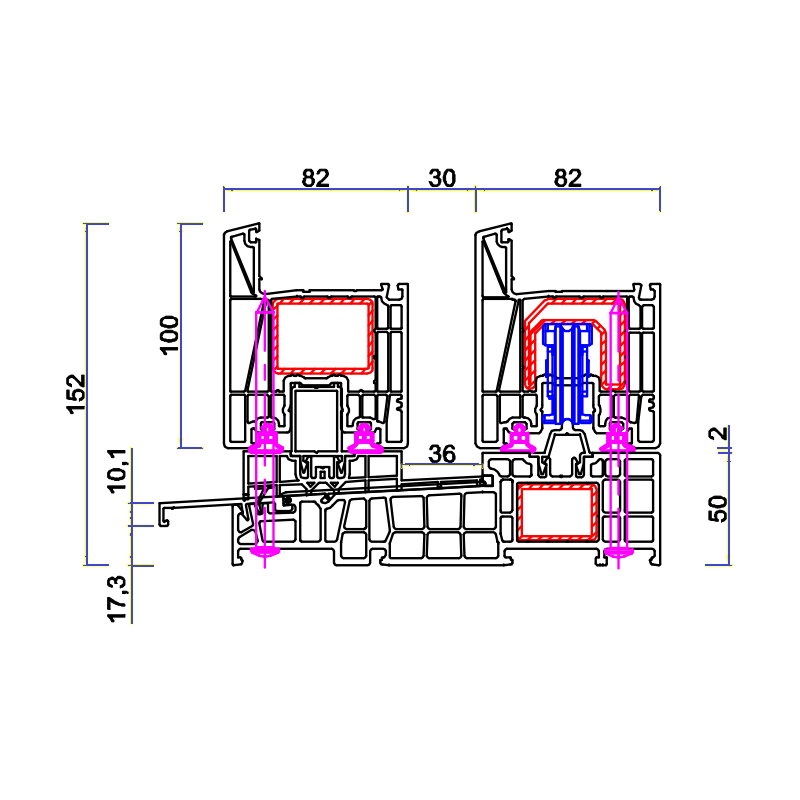

Salamander Evolution Drive 82

Our realizations

Dublin

Ireland

uPVC Sliding Doors EvolutionDrive 82 | Streamline 76 uPVC windows | Dublin | #65

Frequently asked questions

How do I get a quote?

First of all, you should send us your enquiry where you specify your chosen joinery parameters, dimensions and qualities.

In order to prepare a quote for you, we need the following details:

Model window/door (aluminium/uPVC) – [any specific U-value is required?]
Width x Height [mm]
Colour from internal/external side
Glazing: double/triple
Eircode (so we can check delivery cost)
Contact details, email address, phone number

In case you want the quote for installation services as well, let us know and specify whether you are interested in a new project or windows replacement.

Remember that at Fenbro, we have set minimum order values for each order.

The minimum order value for Fenbro products is as follows:

windows – at least 5 windows or the order value needs to be equal €2,000 net or more (for products)
uPVC doors/aluminium doors – the order value needs to be equal €2,000 net or more (for products)
composite doors/sliding systems – 1 product or more
VELUX products – at least 3 products

Next, we will provide the personalised quote for the purchase of joinery together with installation costs, delivery and lead-time.

Please send all the information and enquiries about our offer to the following e-mail address: info@fenbro.com

GET A FREE QUOTE

Do you deliver & install joinery?

We deliver joinery to Ireland every week. At the moment, we offer installation services only in Ireland.

Our offer includes:

Product
Delivery
Installation (Ireland) + after-sales service
You receive a 5-year guarantee on Windows/doors (10 years for VELUX) and 2 years for the fitting.

We do not have any showroom in your country. All our joinery is sent to customers directly from Poland.
Our Company is based in Warsaw (Poland) and we also have a local sales point and warehouse in Ostrołęka, Poland.
All joinery is produced by Polish producers.

What are the delivery costs?

The cost of each delivery is calculated individually. The cost of delivery depends on the weight and size of pallets and their number.

Please send all enquiries about our offer to the following e-mail address: info@fenbro.com

Do you have a price list?

We are selling complex products, tailored services and our customers often require a special solution. That’s why each of our products is personalised and we do not have the standard price list. Every product is quoted according to individual customer needs.

Please send all enquiries about our offer to the following e-mail address: info@fenbro.com

How does the payment for your service look like?

There are two payment options for our customers.

A) You can pay in two instalments:

50% when you accept the order
another 50% before the dispatch of the goods.

B) You can pay full (100% of the amount) in advance.*

*then we give you 2% discount

We only accept payments via bank transfer.

What is the warrantee/guarantee on your products?

All windows and doors purchased at FENBRO have a following full guarantee:

5 years for all our products
10 years for all VELUX products
2 years for the installation (with service provided by us)

In case of each sale, you get a sales contract together with an invoice. We always archive all invoices for 5 years as evidence of purchase.

Guarantee and complaints:

In case of any complaint, we will ask for photos and a description of what happened (preferably by an email). We are sending new products as fast as we can and in the meantime, we are taking care of the complaint. The typical length of time for complaint resolution is from 3 up to 4 weeks . You will get the spare parts within 7 -14 days.

Please remember that the transport also is fully insured so everything is secured at all stages. For the delivery, you get a CMR document. It is a confirmation of delivery a proof that the products were received in good condition. You have 48 hours to check the conditions of your order.

Depending on the type of the issue, we are sending spare parts, new products for replacement, or we refund the money.

Guarantee and DIY installation:

The guarantee is valid even if the window installation is carried out by our clients themselves or by an external company. The most important thing is that the installation is carried out in an artful manner and according to the installation instructions for the window.

Additionally, we offer support after the guarantee period is over. It means that if something happens with your joinery afterwards, we can get you all the necessary spare parts, ready-made products and tools to help you solve the issue (the service is chargeable at the end of the guarantee period).

Please note that if you choose your own fitter, you are responsible for providing them with correct measurements of the openings as well as products dimensions. We cannot be held responsible for any irregularities in this regard.

What is the minimum required order value?

At Fenbro, we have set minimum order values for each order. If you want us to start processing your quote request and your order, you should follow a minimum required order value.

The minimum order value for Fenbro products is as follows:

windows – at least 5 windows or the order value needs to be equal €2,000 net or more (for products)
uPVC doors/aluminium doors – the order value needs to be equal €2,000 net or more (for products)
composite doors/sliding systems – 1 product or more
VELUX products – at least 3 products

IMPORTANT INFO: VELUX roof windows are only an “addition” to our standard offer, i.e. if the customer buys vertical windows and/or doors, then they can choose VELUX windows as an add-on (according to the minimum required order value). Buying only VELUX roof windows is unfortunately impossible.
