Aluminium Sliding Doors MB-59HS Monorail
Brand: Aluprof
What you get
- A monorail type of a sliding system
- The narrow sash overlap offers a slim, modern look and more light
- Robust 3-chamber profiles with insulating chambers and wide thermal breaks in the center
Lead time: up to 4 weeks
Warranty included at purchase
Specifications
Depth of the frame [mm]
120 - 199
Maximum thickness of the glazing unit [mm]
42
Opening direction
Inwards
Wind resistance
C2
Water resistance
1A
Air permeability
Class 2
MB-59 HS Monorail benefits
The MB-59 HS Monorail lift-and-slide doors offer an affordable way to connect your home with outdoor spaces like balconies, terraces, or gardens. The innovative design features fixed glass within the frame, allowing for larger windows that bring in more natural light. Offering great value, the MB-59HS Monorail is priced lower than premium HST systems while maintaining excellent Uw parameters. It provides excellent thermal and acoustic insulation, along with strong water and air tightness, ensuring energy efficiency and environmental protection.
- A monorail type of a sliding system
- The possibility of using a narrow overlap of the sashes, which makes it possible to achieve a slim appearance, allowing even more light to enter the room and giving the product a modern look.
- Maximum sash dimensions: 3300 mm x 2800 mm
- Fittings – lift&slide system: up to 300 kg
- Sash depth: 59 mm
- Burglary resistance: RC2
- Low aluminium threshold with a thermal barrier
- Glazing in units up to 42 mm wide
- The possibility to create even multiple sash structures
- Robust 3-chambered profiles with insulating chamber equipped with wide thermal breaks in the central part
- High water and air-tightness thanks to specially shaped gaskets and hardware
- Fixed lites fabricated with glass mounted directly to the frame
- Simplified construction technology to reduce time and costs of fabrication
Gallery
Price list
Aluminium windows and sliding systems: the Customer pays 3-5% more for a one-sided coating or two-sided coating.
uPVC windows: the Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.
uPVC sliding doors: the Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.
The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

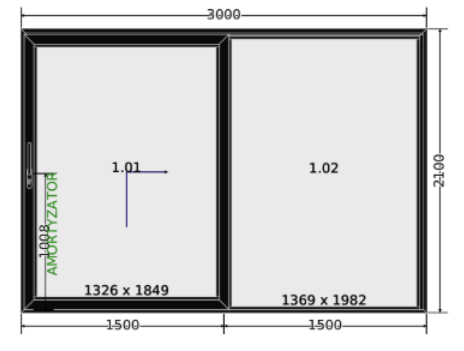

One active-leaf door
Size:
3000 x 2100
Double-glazedPrice from:
€ 3,247 net
Triple-glazedPrice from:
€ 3,852 net

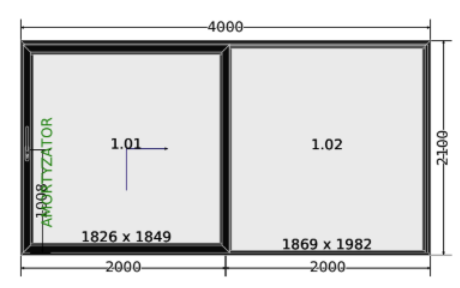

One active-leaf door
Size:
4000 x 2100
Double-glazedPrice from:
€ 4,417 net
Triple-glazedPrice from:
€ 5,657 net

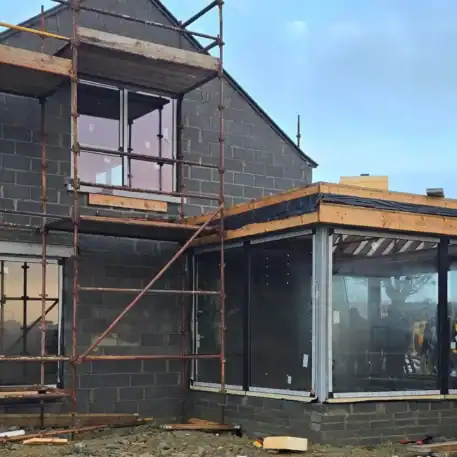

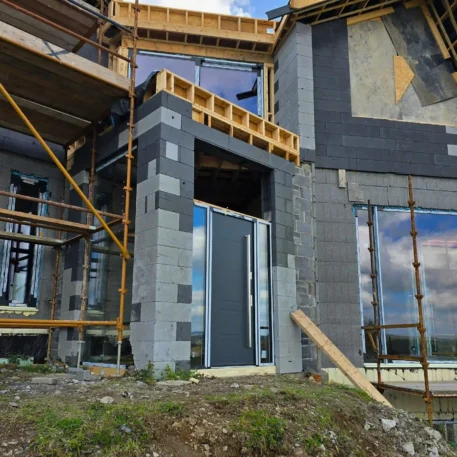

This product in our projects
Frequently Asked Questions
Yes, the price may change after measurements because the window/door dimensions previously provided by the Customer will probably change. However, they are not usually the biggest cause of price changes. The changes are most often influenced by add-ons and product upgrades chosen by the Customer after measurements, such as colour changes, glazing units or accessories (e.g. silent closing, handles, electronic controls, etc.).
