Aluminium Sliding Doors Monorail Ultraglide

Brand: Aliplast

What you get

Sliding and lift-sliding system
Single-rail frame
Glazing units up to 71 mm

Get a free quote

Lead time: up to 4 weeks

Warranty included at purchase

Specifications

Depth of the frame [mm]

176

Maximum thickness of the glazing unit [mm]

Opening direction

Inwards

Wind resistance

Water resistance

750 Pa

Air permeability

Class 4

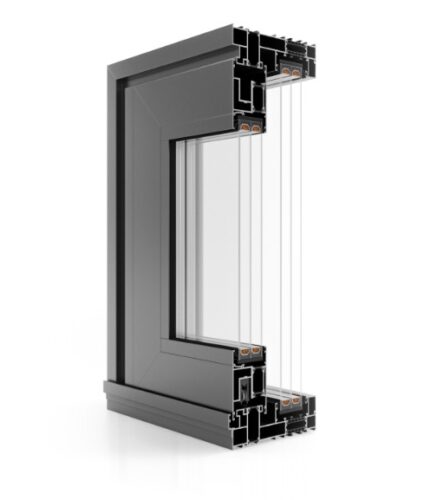

Monorail Ultraglide – benefits:

The option of the Ultraglide system, both in the form of sliding or lift-sliding system. The fixed part (fix) is glazed from the outside what facilitates the assembly of large structures. Unlike standard HS constructions, the fixed part of this system is glazed in the frame, not in the sash. The system features improved thermal performance.

The depth of the frame: 176 mm
Sash depth: 67 mm
Fix – glazing units up to 71 mm
Sliding sash – glazing units up to 49 mm
Maximum sash weight: 400 kg
Single-rail frame
Possible combinations of structures: 2 – elements (sash + fix), 3 – elements (sash + fix + sash), 4 – elements (2 sashes + 2 fixes)
The possibility of glazing from the outside, thanks to which it is possible to use large-size and heavy fillings

Gallery

Price list

The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include accessories or custom sizes and dimensions. Additionally, each colour change affects the final price of the product in the following way:

Aluminium windows and sliding systems: the Customer pays 3-5% more for a one-sided coating or two-sided coating.
uPVC windows: the Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.
uPVC sliding doors: the Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.

The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

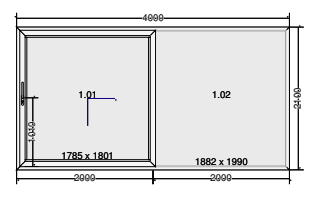

One active-leaf door
Size:
4000 x 2100
Double-glazedPrice from:
€ 4,242 net
Triple-glazedPrice from:
€ 5,607 net

Files to download

Aliplast-Ultraglide-Monorail Ultraglide-Monorail_Scheme-C_vertical Ultraglide-Monorail_Scheme-C_horizontal Ultraglide-Monorail_Scheme-A_vertical Ultraglide-Monorail_Scheme-A_horizontal
