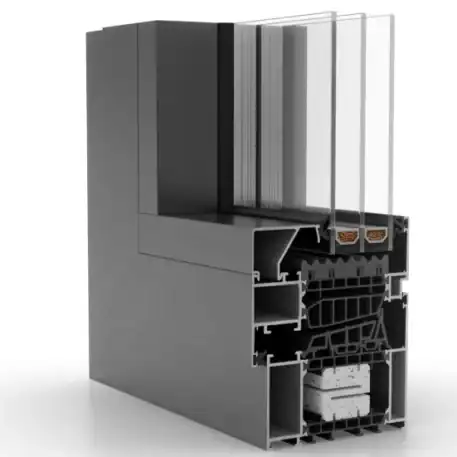

Aluminium Window MasterLine 10
Brand: Reynaers
What you get
- Maximum use of daylight with the highest level of thermal insulation
- Glazing thickness up to 88 mm
- Three profile variants: Functional, Deco and Renaissance
Lead time: up to 4 weeks
Warranty included at purchase
Specifications
Depth of the frame [mm]
97
Maximum thickness of the glazing unit [mm]
88
Number of chambers
3
Number of gaskets
3
U-value
0.8 W/(m²K)
Wind resistance
C4
Water resistance
Class E900
Acoustic insulation
44 - 46 dB
Air permeability
Class 4

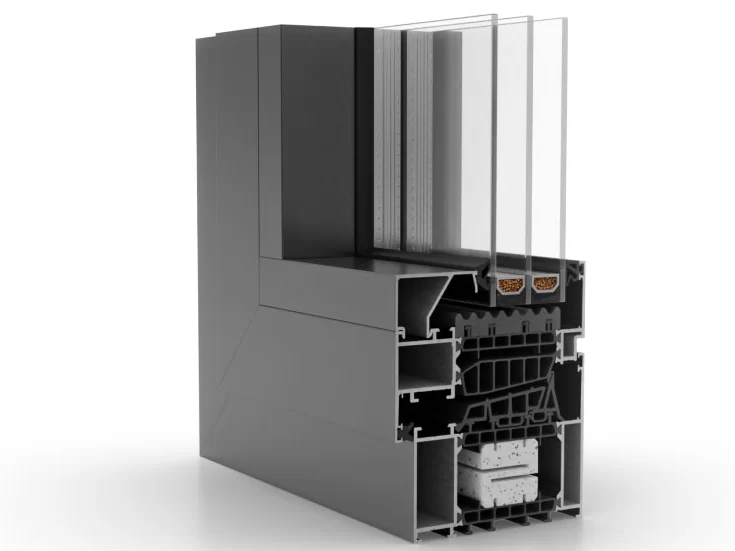

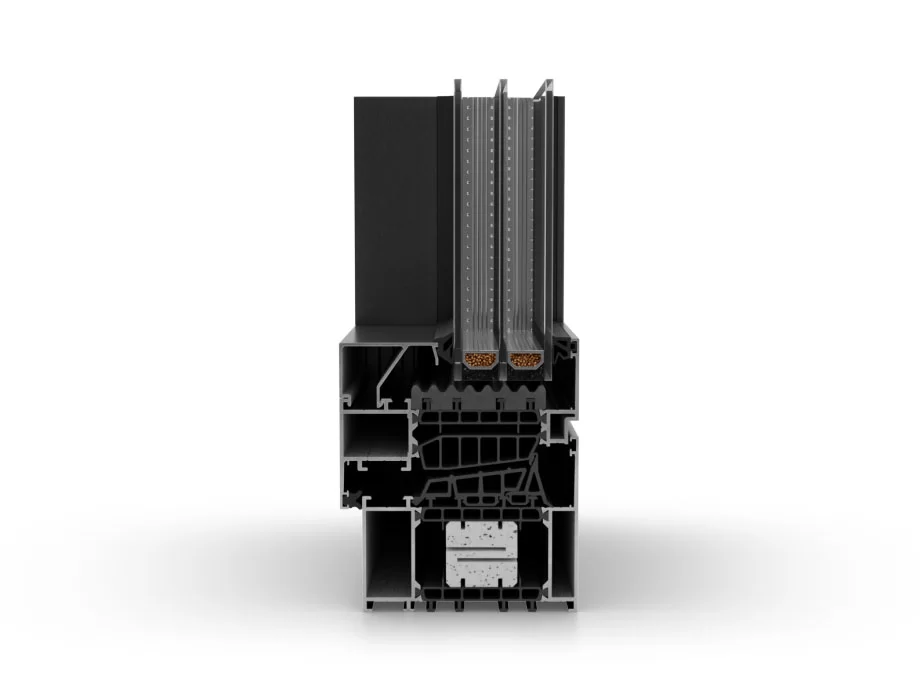

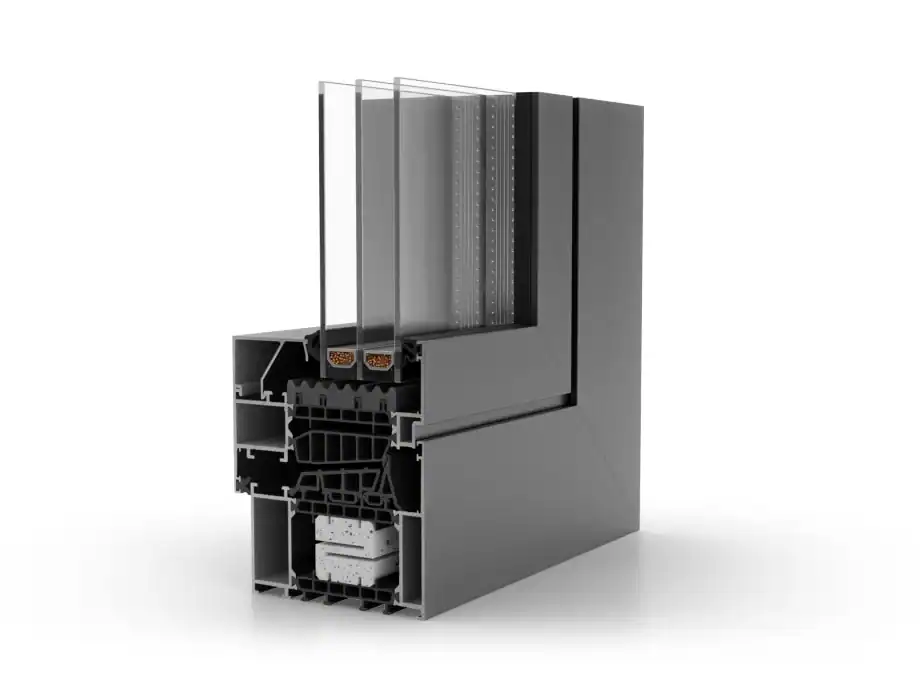

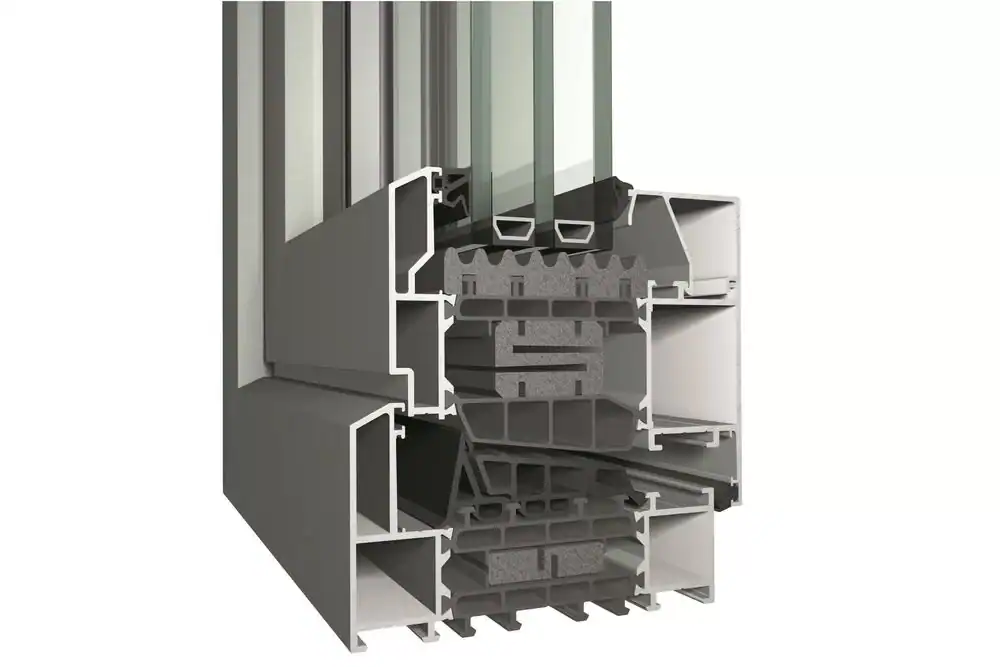

MasterLine 10:
The MasterLine 10 window system is characterised by very high durability and resistance to mechanical and weather factors, and thanks to the presence of a thermal break, it is recommended for use in energy-saving and passive buildings. The tightness of the MasterLine 10 system is guaranteed by the use of central gaskets, which improve the adhesion of the sash to the frame.
Thanks to the slim profiles combined with large glazing, MasterLine 10 window looks elegant and lets a lot of natural light into the interior. Simple, geometric forms are universal and easy to adapt to any architectural style.

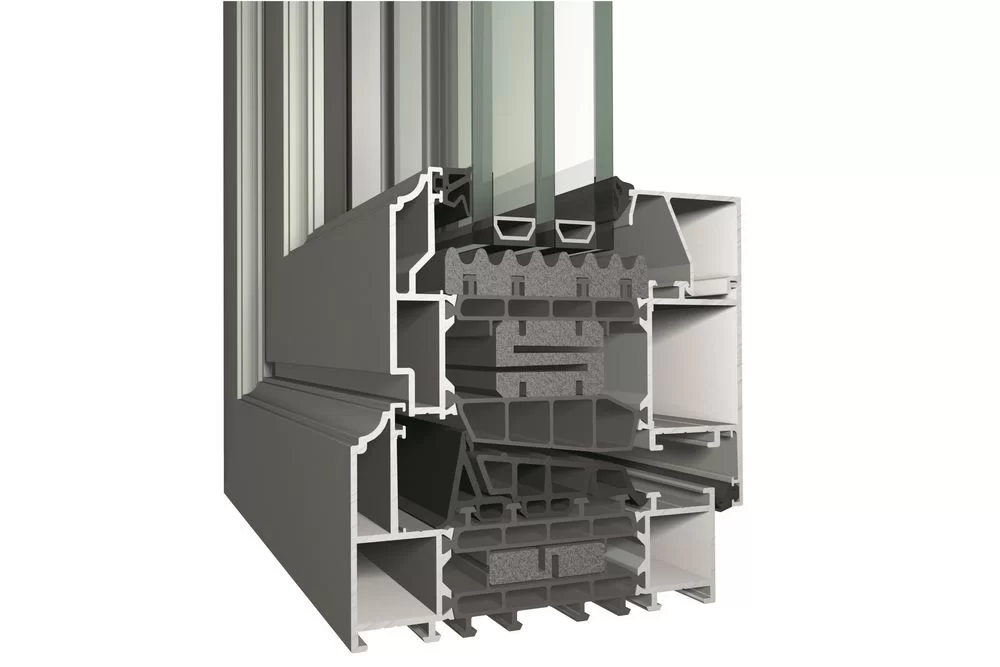

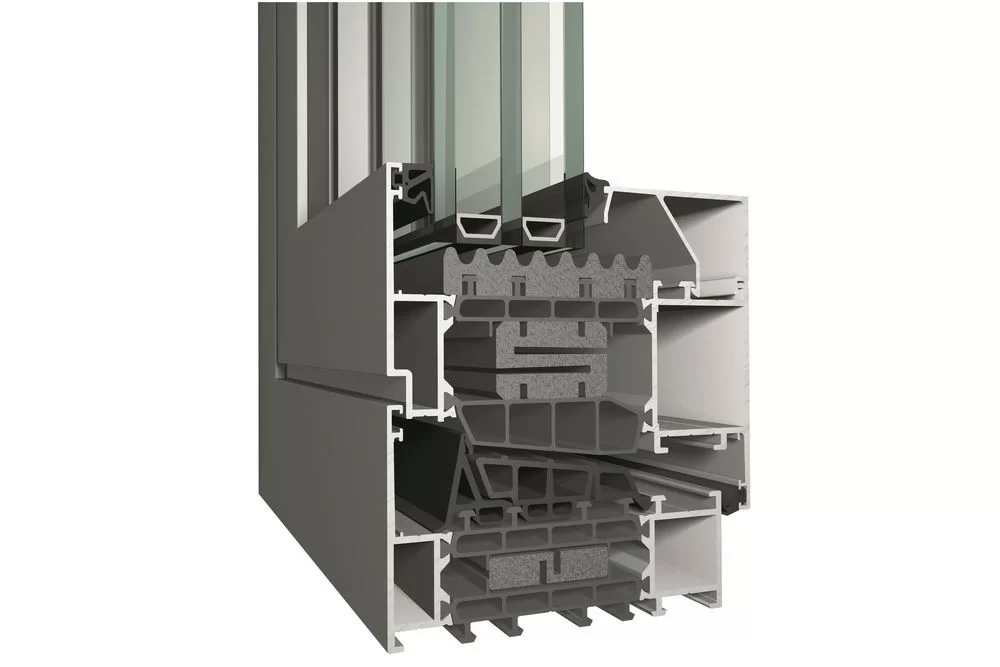

MasterLine 10 profiles are available in three design variants: Functional (with a modern, simple style), Deco (with gently rounded edges) and Renaissance (resembling classically profiled wooden frames).
- The Passive House-certified solution ideal for low-energy buildings
- Maximum use of daylight while maintaining the highest level of thermal insulation
- Construction depth: 97 mm
- Sash and frame folding depth: 107 mm
- Glazing unit thickness up to 88 mm (78 mm for a fixed sash)
- Maximum height of the window sash: 2800 mm
- Maximum sash weight: 200 kg
- Great thermal parameters and tightness
- Warm system with a thermal break
- Gaskets made of high quality materials
- Burglary resistance: RC2 and RC3

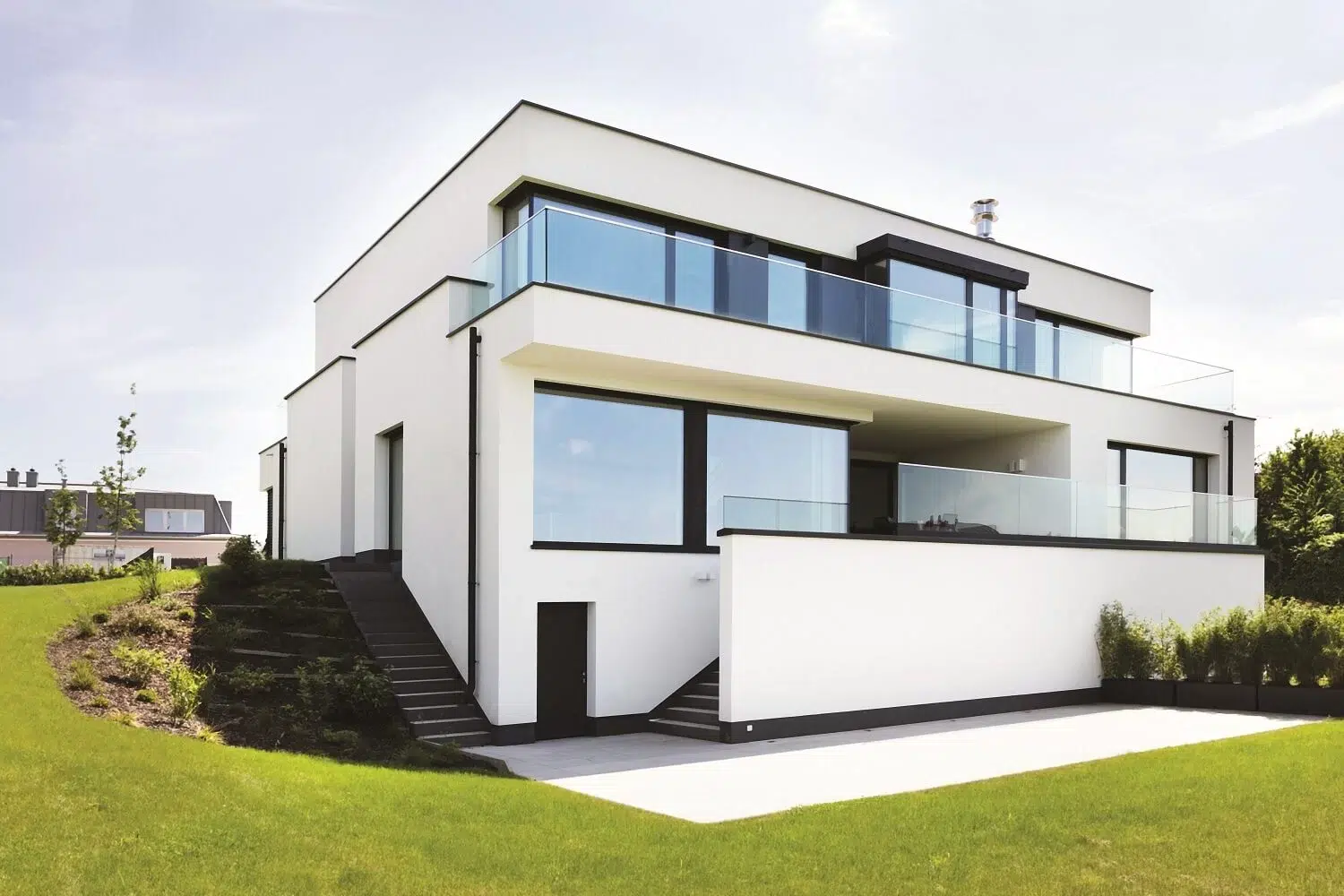

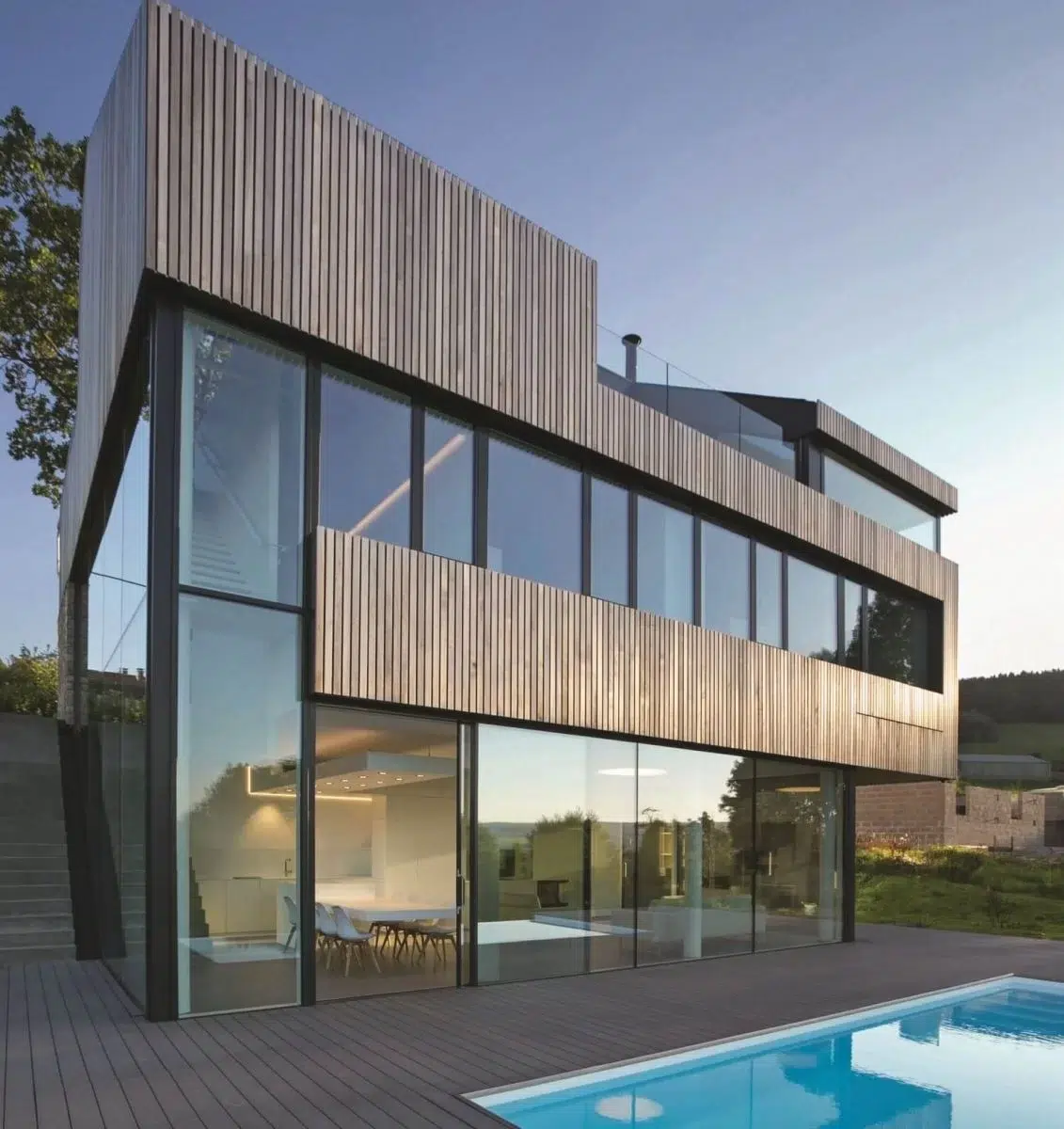

Gallery
Price list
Aluminium windows and sliding systems: the Customer pays 3-5% more for a one-sided coating or two-sided coating.
uPVC windows: the Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.
uPVC sliding doors: the Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.
The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!
Fixed window
Size:
1000 x 1000
Triple-glazedPrice from:
€ 481 net
Tilt and turn window
Size:
1000 x 1000
Triple-glazedPrice from:
€ 965 net

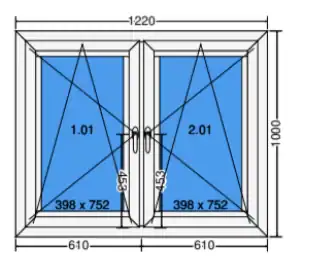

Double sash tilt and turn window
Size:
1220 x 1000
Triple-glazedPrice from:
€ 1,549 net
Files to download
Latest Fenbro projects for inspiration
Frequently Asked Questions
Yes, the price may change after measurements because the window/door dimensions previously provided by the Customer will probably change. However, they are not usually the biggest cause of price changes. The changes are most often influenced by add-ons and product upgrades chosen by the Customer after measurements, such as colour changes, glazing units or accessories (e.g. silent closing, handles, electronic controls, etc.).
