Aluminium Window MasterLine 8 Functional
Brand: Reynaers
What you get
- Maximum use of daylight with the highest level of thermal insulation
- Glazing thickness up to 63 mm
- Depth of the frame: 77 mm
Lead time: up to 4 weeks
Warranty included at purchase
Specifications
Depth of the frame [mm]
77
Maximum thickness of the glazing unit [mm]
62
Number of chambers
3
Number of gaskets
2
Opening direction
Inwards
U-value
0.81 W/(m²K)
Wind resistance
C5
Water resistance
Class E900
Acoustic insulation
44 - 46 dB
Air permeability
Class 4
MasterLine 8 :
An extremely durable window and door system. It offers three levels of insulation, thanks to which it is used in buildings with a high level of insulation, as well as the energy-saving and passive ones. Obtaining different levels of insulation is possible thanks to the use of technologically advanced and innovative materials. This unique system solution offers new options for opening sashes of various dimensions, such as single or double-leaf balcony doors with a low threshold. Thanks to the exceptional quality and aesthetics, MasterLine 8 is suitable for any architectural style.
- Maximum use of daylight while maintaining the highest level of thermal insulation
- Frame depth: 77 mm
- Sash depth: 87 mm
- Glazing with packages from 4 to 62 mm
- Maximum dimensions of the window sash: H up to 2800 mm, L up to 1700 mm
- Maximum sash weight: 200 kg
- Great thermal parameters and tightness
- Warm system with a thermal break available in several thermal variants
- Gaskets made of high quality materials
Gallery
Price list
Aluminium windows and sliding systems: the Customer pays 3-5% more for a one-sided coating or two-sided coating.
uPVC windows: the Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.
uPVC sliding doors: the Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.
The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

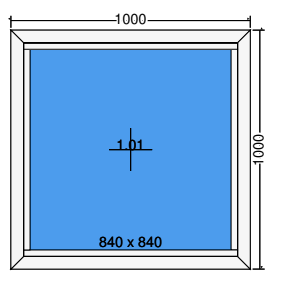

Fixed window
Size:
1000 x 1000
Triple-glazedPrice from:
€ 407 net
Tilt and turn window
Size:
1000 x 1000
Triple-glazedPrice from:
€ 740 net
Double sash tilt and turn window
Size:
1000 x 1000
Triple-glazedPrice from:
€ 1,088 net
French door
Size:
2000 x 2100
Triple-glazedPrice from:
€ 3,331 net
Files to download
Frequently Asked Questions
Yes, the price may change after measurements because the window/door dimensions previously provided by the Customer will probably change. However, they are not usually the biggest cause of price changes. The changes are most often influenced by add-ons and product upgrades chosen by the Customer after measurements, such as colour changes, glazing units or accessories (e.g. silent closing, handles, electronic controls, etc.).
