Aluminium Window Ecofutural
Brand: Aliplast
What you get
- An aluminium profile system with a thermal break
- Very good technical parameters
- Window frame installation depth: 65 mm
Lead time: up to 4 weeks
Warranty included at purchase
Specifications
Depth of the frame [mm]
65
Maximum thickness of the glazing unit [mm]
24
Number of chambers
3
Number of gaskets
2
Opening direction
Inwards
U-value
1.7 W/(m²K)
Wind resistance
C4
Water resistance
9A
Acoustic insulation
29 - 38 dB
Air permeability
Class 3
Ecofutural – benefits:
The stable system for excellent thermal insulation and the highest safety standards. Perfect for production of windows, doors, and frames. Recommended for energy efficient construction.
- Window frame installation depth: 65 mm
- Sash depth: 74 mm
- Glazing thickness up to 24 mm

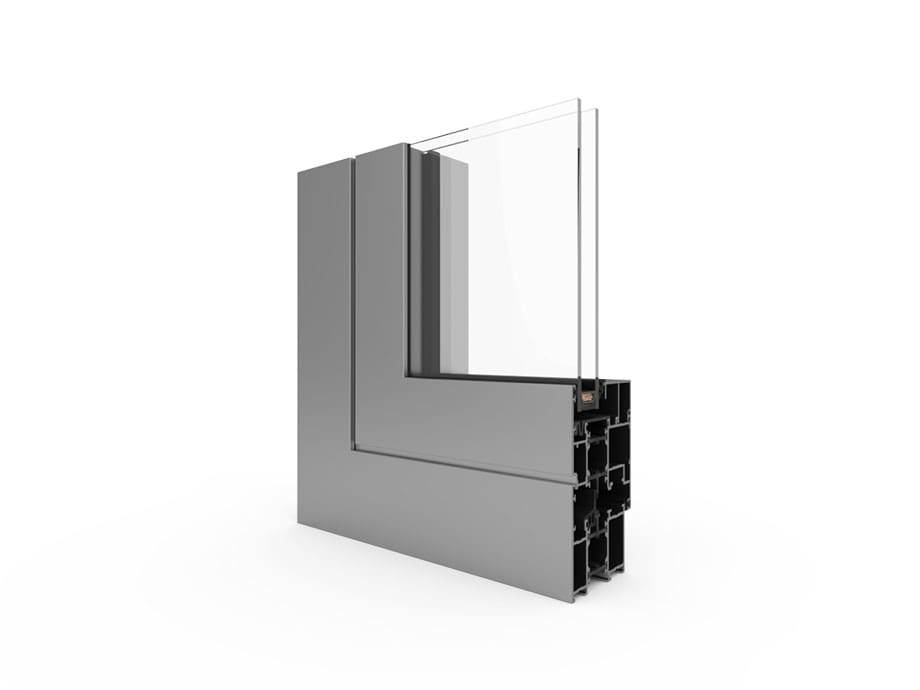

- 3-chamber aluminium profile structure for locations where higher thermal performance is required
- A thermal break of 24 mm
- The profiles separated with sheets made of glass fibre reinforced polyamide
- The profiles can be bent – arched windows available
- The possibility to design Monoblock type windows with a displaced axis of rotation – PIVOT doors
- The system is available in the following improved thermal insulation versions:
- ECOFUTURAL (i) – with thermal insulation along the circumference where the pane contacts the profile
- ECOFUTURAL (i+) – with thermal insulation along the circumference where the pane contacts the profile and in the space between thermal breaks.
Gallery
Price list
Aluminium windows and sliding systems: the Customer pays 3-5% more for a one-sided coating or two-sided coating.
uPVC windows: the Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.
uPVC sliding doors: the Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.
The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

Fixed window
Size:
1000 x 1000
Double-glazedPrice from:
€ 304 net

Tilt and turn window
Size:
1000 x 1000
Double-glazedPrice from:
€ 550 net

Double sash tilt and turn window
Size:
1000 x 1000
Double-glazedPrice from:
€ 810 net

French door
Size:
2000 x 2100
Double-glazedPrice from:
€ 2,523 net
Files to download
Frequently Asked Questions
Yes, the price may change after measurements because the window/door dimensions previously provided by the Customer will probably change. However, they are not usually the biggest cause of price changes. The changes are most often influenced by add-ons and product upgrades chosen by the Customer after measurements, such as colour changes, glazing units or accessories (e.g. silent closing, handles, electronic controls, etc.).
