Aluminium Sliding Doors MB-59HS

Brand: Aluprof
What you get
  • The possibility to create large sashes up to 2.8 m high and 3.3 m wide
  • Low-level threshold options
  • Robust 3-chambered profiles with wide thermal breaks



Add to Compare

Specifications

Depth of the frame [mm]120 - 199
BrandAluprof
Maximum thickness of the glazing unit [mm]42
Wind resistanceC2
Water resistance1A
Air permeabilityClass 2

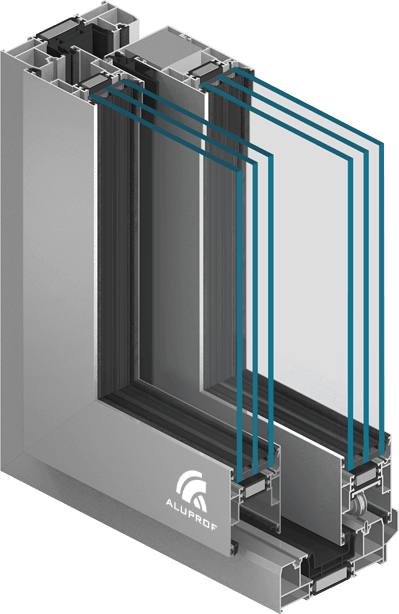

MB-59HS

The MB-59 HS system is a perfect choice if you’re looking for energy conservation and environment protection. It is the optimised solution in terms of construction and and profiles and frames dimensions. Lift and slide doors based on the MB-59 HS system can successfully replace traditional balcony windows. They provide enormous constructional possibilities and assure an extraordinary look – both to the interiors and the entire facade.

MB-59HS – benefits

  • Two types of window frame: 2-rails/ 3-rails
  • The depth of the frame: 120 mm (with double running rail profiles) or 199 mm (with triple running rail profiles)
  • Maximum sash dimensions: 3300 mm x 2800 mm
  • Fittings – lift&slide system: up to 300 kg
  • Sash depth: 59 mm
  • Burglary resistance: RC2
  • Low aluminium threshold with a thermal barrier
  • Glazing in units up to 42 mm wide
  • The possibility to create even 6-wing structures
  • Robust 3-chambered profiles with insulating chamber equipped with wide thermal breaks in the central part
  • High water and air-tightness thanks to specially shaped gaskets and hardware
  • Fixed lites fabricated with glass mounted directly to the frame
  • Simplified construction technology to reduce time and costs of fabrication

Opening schemes

Scheme G
Scheme C
Scheme A
Scheme D

Colours

RAL palette

RAL 7000
RAL 7001
RAL 7002
RAL 7003
RAL 7004
RAL 7005
RAL 7007
RAL 7008
RAL 7009
RAL 7010
RAL 7011
RAL 7012
RAL 1000
RAL 1001
RAL 1002
RAL 1003
RAL 1004
RAL 1005
RAL 1006
RAL 1007
RAL 1011
RAL 1012
RAL 1013
RAL 1014
RAL 2000
RAL 2001
RAL 2002
RAL 2003
RAL 2004
RAL 2005
RAL 2007
RAL 2008
RAL 2009
RAL 2010
RAL 2011
RAL 2012
RAL 3000
RAL 3001
RAL 3002
RAL 3003
RAL 3004
RAL 3005
RAL 3007
RAL 3009
RAL 3011
RAL 3012
RAL 3013
RAL 3014
RAL 4001
RAL 4002
RAL 4003
RAL 4004
RAL 4005
RAL 4006
RAL 4007
RAL 4008
RAL 4009
RAL 4010
RAL 4011
RAL 4012
RAL 5000
RAL 5001
RAL 5002
RAL 5003
RAL 5004
RAL 5005
RAL 5007
RAL 5008
RAL 5009
RAL 5010
RAL 5011
RAL 5012
RAL 6000
RAL 6001
RAL 6002
RAL 6003
RAL 6004
RAL 6005
RAL 6006
RAL 6007
RAL 6008
RAL 6009
RAL 6010
RAL 6011
RAL 8000
RAL 8001
RAL 8002
RAL 8003
RAL 8004
RAL 8007
RAL 8008
RAL 8011
RAL 8012
RAL 8014
RAL 8015
RAL 8016
RAL 9001
RAL 9002
RAL 9003
RAL 9004
RAL 9005
RAL 9006
RAL 9007
RAL 9010
RAL 9011
RAL 9012
RAL 9016
RAL 9017

Price list

The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include changes in colours, accessories, dimensions, etc. Each change affects the final price of the product. The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

Files to download

Recently viewed products

mb-59hs-26-pl|218_mb-59hs_waski_slupek_72dpi|mb-59hs-hi_017|WhatsApp Image 2021-06-30 at 18.27.15 (1)|WhatsApp Image 2021-06-30 at 18.25.36 (2)|WhatsApp Image 2021-06-30 at 18.25.36 (3)|WhatsApp Image 2021-06-30 at 18.27.15 (2)|WhatsApp Image 2021-06-30 at 18.25.36|WhatsApp Image 2021-06-30 at 18.27.15|WhatsApp Image 2021-06-30 at 18.25.36 (1)||MB-59HS|
Aluminium Sliding Doors MB-59HS
Brand: Aluprof
Add to compare

Similar products

Visioglide_plus2_alpha-127__600x830|152155399598e29e|1519902296f04d08|Visoglide|
Aluminium Sliding Doors Visoglide Plus
Brand: Aliplast
Add to compare

How it works

Get a better understanding of how we operate in order to satisfactorily fulfil your orders!
Asking for a quote

Asking for a quote

You press the ‘Get a free quote’ button and submit your inquiry with chosen joinery parameters.
Receiving the quote

Receiving the quote

Our sales team returns to you with the purchase quote on joinery, delivery/installation costs and lead time.
Verification

Verification

Our expert goes through all the information included in the offer together with you.
Agreement & Payment

Agreement & Payment

It is the stage where we confirm the contract and you make the payment.
Production

Production

It’s the time it takes to produce your ordered windows and doors (or any products from our offer).
Delivery

Delivery

This is the shipment period for your ordered products.
Installation

Installation

If you are interested in our installation services, we agree on the dates individually.

Frequently Asked Questions

First of all,  you should send us your enquiry where you specify your chosen joinery parameters, dimensions and qualities. In order to prepare a quote for you, we need the following details:

  • Model window/door (aluminium/uPVC) - [any specific U-value is required?]
  • Width x Height [mm]
  • Colour from internal/external side
  • Glazing: double/triple
  • Eircode (so we can check delivery cost)
  • Contact details, email address, phone number
In case you want the quote for installation services as well, let us know and specify whether you are interested in a new project or windows replacement. Next, we will provide the personalised quote for the purchase of joinery together with installation costs, delivery and lead-time. Please send all the information and enquiries about our offer to the following e-mail address: [email protected]

We are selling complex products, tailored services and our customers often require a special solution. That's why each of our products is personalised and we do not have the standard price list. Every product is quoted according to individual customer needs. Please send all enquiries about our offer to the following e-mail address: [email protected]

At the moment, the estimated lead time for specific product categories is as follows:

  • uPVC windows and doors, shutters: up to 7 weeks
  • Velux roof windows, blinds & accessories: up to 8 weeks
  • Aluminium windows, doors: up to 7 weeks
  • Steel doors: up to 8 weeks
  • Garage Doors: up to 7 weeks
Additionally, for every category, you have to count in 5 days for delivery time.
