Aluminium Bifold Doors Panorama Fold line
Brand: Aliplast
What you get
- 3-chamber profile construction
- Sealing in the form of EPDM gaskets and brushes
- Two threshold versions – as a continuation of the frame or a low threshold
Lead time: up to 4 weeks
Warranty included at purchase
Specifications
Depth of the frame [mm]
74.5
Maximum thickness of the glazing unit [mm]
50
U-value
1.4 - 2.0 W/(m²K)
Wind resistance
C1
Water resistance
2A
Air permeability
Class 2
Panorama Fold line
Panorama Fold line – benefits
- The depth of the frame: 74.5 mm
- Maximum sash dimensions: 1000 mm x 2500 mm
- Fittings – lift&slide system: up to 100 kg
- Sash depth: 74.5 mm
- Glazing units up to 50 mm
- The possibility of using from 2 to 8 sashes
- Equipped with a brush seal and an air-tight threshold which design is based on a frame around the perimeter of the entire terrace window
- Available in two threshold versions – continuation of the frame used at the top and sides or a low threshold sunk in the floor

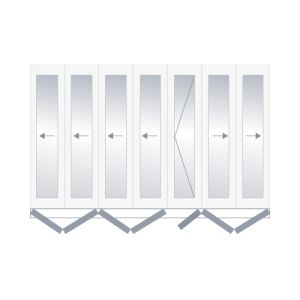

- The availability of outwards or inwards opening and many leaf combinations
- Smooth and easy door operation ensured by specially designed, steel rollers
- High quality EPDM gaskets and brushes effectively protecting against harmful weather conditions

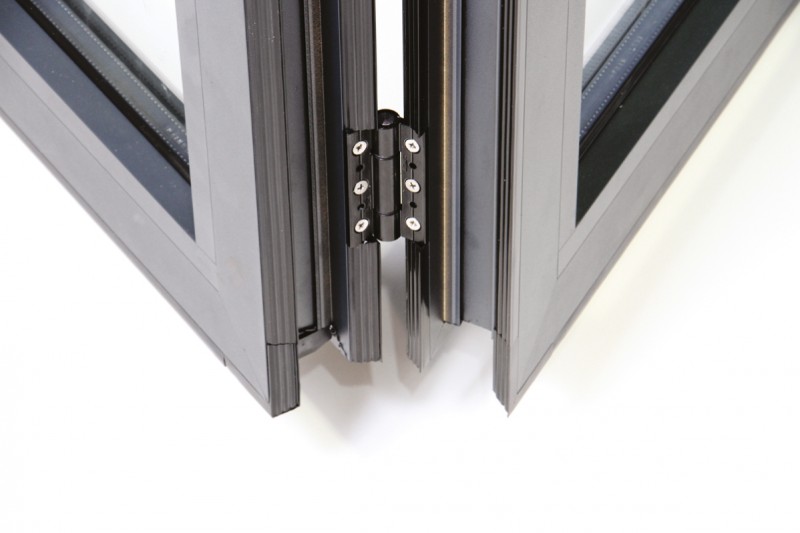

- Sashes connected with each other with system hardware – for a lighter, modern look and more open space

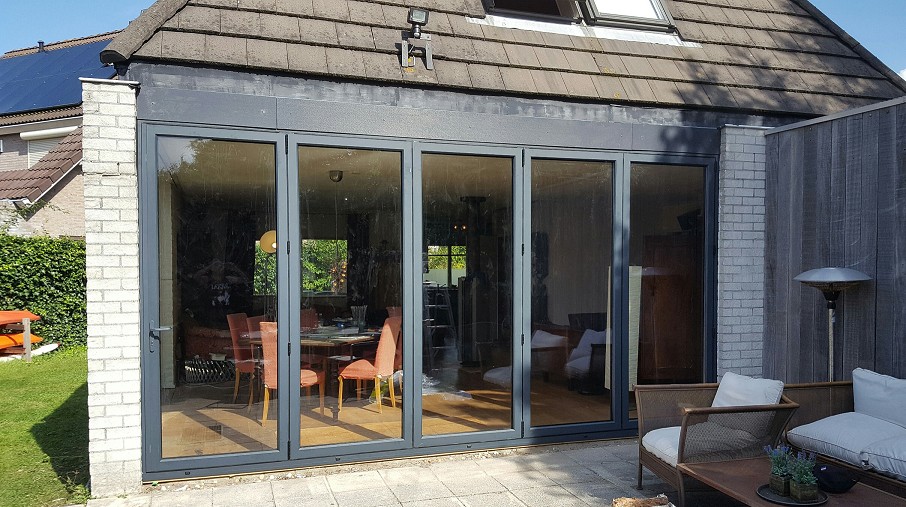

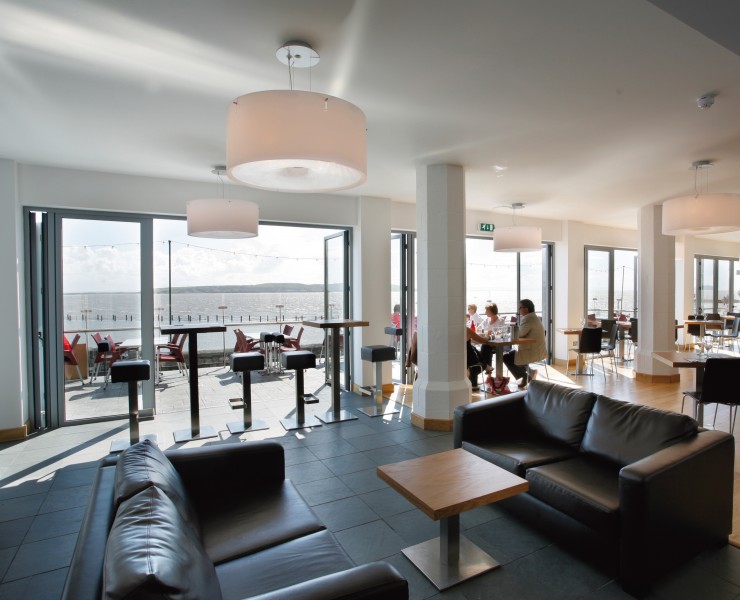

Gallery
Price list
Aluminium windows and sliding systems: the Customer pays 3-5% more for a one-sided coating or two-sided coating.
uPVC windows: the Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.
uPVC sliding doors: the Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.
The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

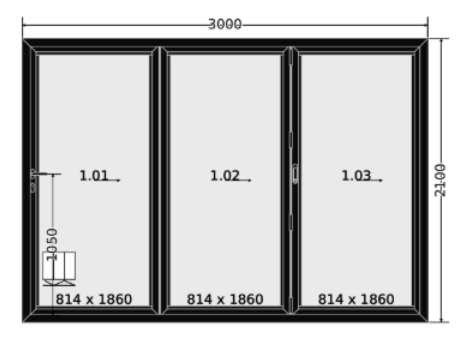

Folding doors
Size:
3000 x 2100
Double-glazedPrice from:
€ 4,272 net
Triple-glazedPrice from:
€ 4,430 net

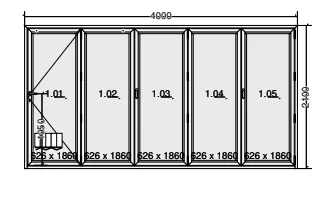

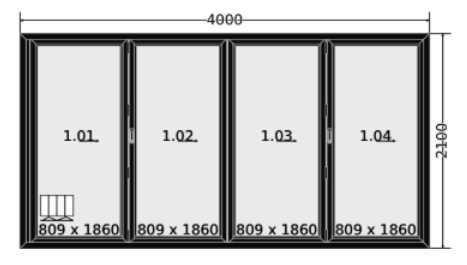

Folding doors
Size:
4000 x 2100
Double-glazedPrice from:
€ 5,432 net
Triple-glazedPrice from:
€ 5,642 net
Folding doors
Size:
4000 x 2100
Double-glazedPrice from:
€ 5,432 net
Triple-glazedPrice from:
€ 5,642 net

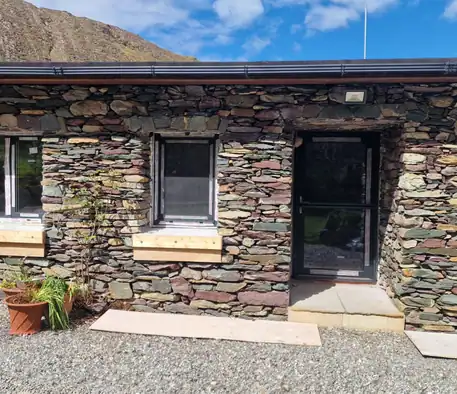

This product in our projects
Frequently Asked Questions
Yes, the price may change after measurements because the window/door dimensions previously provided by the Customer will probably change. However, they are not usually the biggest cause of price changes. The changes are most often influenced by add-ons and product upgrades chosen by the Customer after measurements, such as colour changes, glazing units or accessories (e.g. silent closing, handles, electronic controls, etc.).
