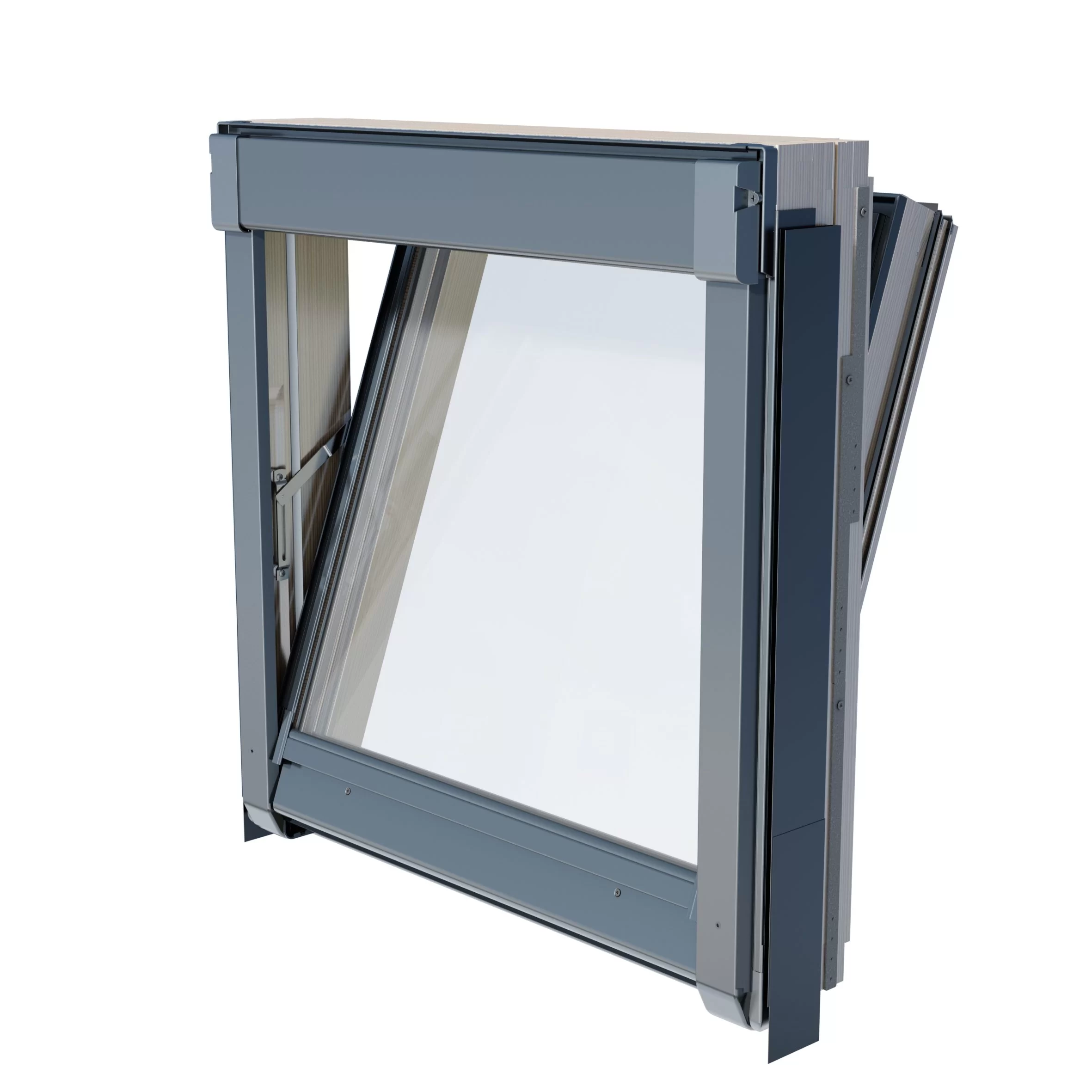

Bottom Hung Vertical Window IKDU I22

Brand: Okpol
What you get
  • Wooden bottom hung window for more glazing area
  • Tilted sash for a better room ventilation
  • Triple-glazing unit with a toughened external pane
Add to Compare

Specifications

BrandOkpol
U-value1.06

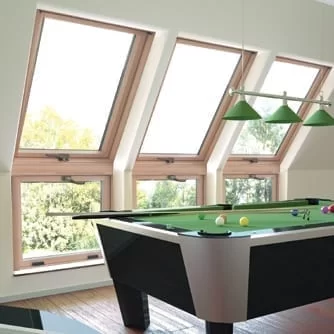

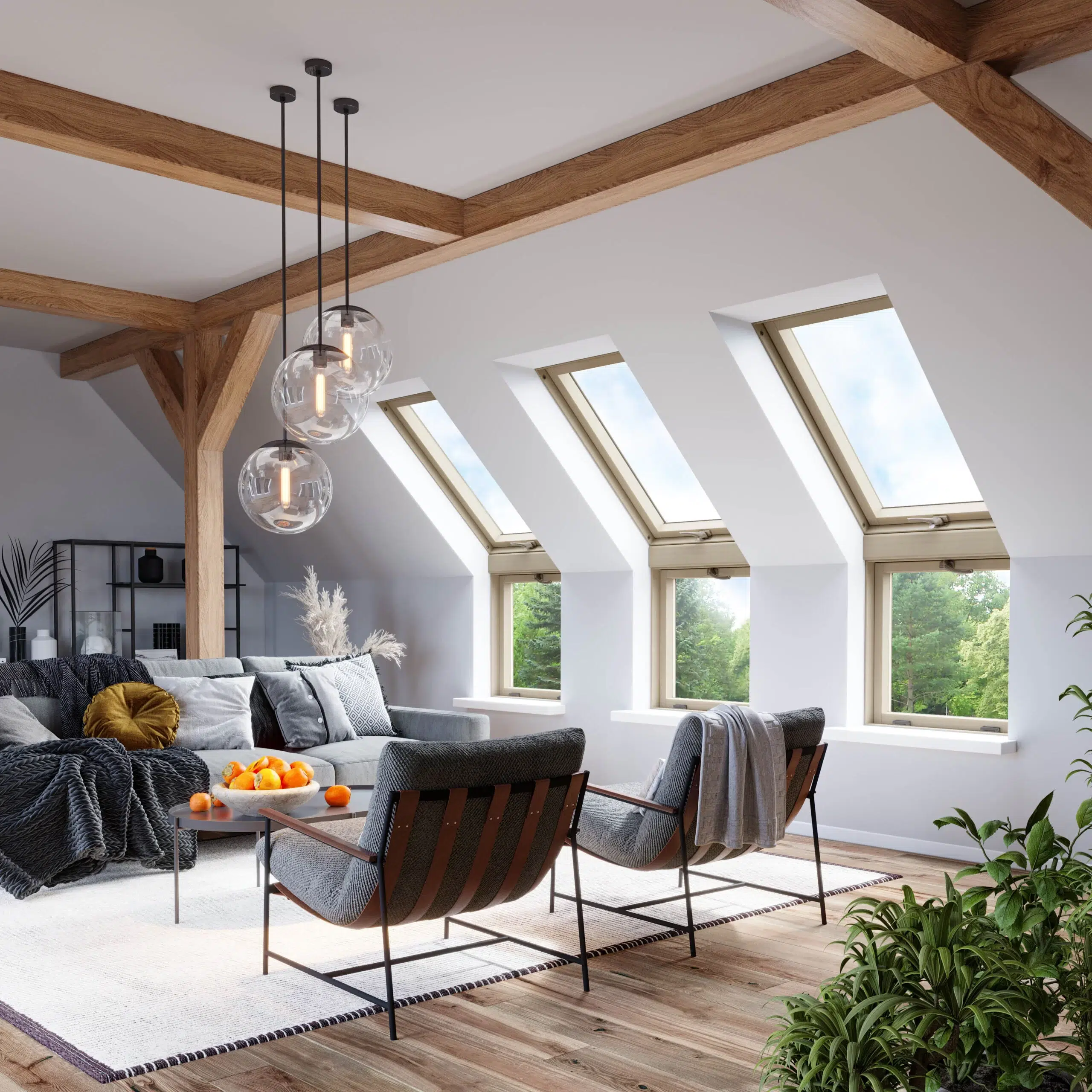

A wooden vertical window that extends the sloping roof window. It is a great way to create a bright and spacious arrangement of the attic. The unique design uses a large glazing area to illuminate the interior with natural light. It has been designed to combine the advantages of a roof window with a facade window. The best effect can be obtained by combining such windows in groups (the so-called combi assembly – two or more windows next to each other). The specificity of the IKDU structure allows the sash to be tilted, thanks to which the rooms can be better aired.

IKDU I22:

  • Attractive window extension in rooms with a sloping-vertical wall
  • Attractive and wide view – from the top edge of the window, even to the floor
  • Triple-glazed unit
  • 4 gaskets
  • Toughened outer pane
  • Insulating gas: Argon
  • Ug= 0,7 W/m2 K
  • Uw = 1,06 W/m2K
  • Warm spacer: 2x
  • Low emission coat: 2x
  • Impregnated pine wood with three coats of varnish
  • The possibility to order the window with laminated pane
  • A handle with the lock and micro-ventilation (2 keys in set)
  • Roof pitch 90°
  • Non-standard sizes: 55-114 x 75-137 cm
