Aluminium Doors Masterline 8 Pivot

Ratings
Brand: Reynaers
What you get
  • Large dimensions (L 1700 mm  x H 3000 mm) with excellent water tightness and thermal parameters
  • Glazing thickness up to 62 mm
  • Two panel options: glass or Despiro door panels
View specification
Lead time: up to 8 weeks Find out more

Guarantee included at purchase Find out more

Specifications

BrandReynaers
Depth of the frame [mm]77
Wind resistanceC3
Water resistance7A
Acoustic insulation43 dB
Air permeabilityClass 4
Ud (door thermal transmittance coefficient)

1.2 W/m2K

Door leaf thickness

104.5 mm

Material

aluminium and glass

A highly insulated, solid door system that enables the creation of unique pivot door structures. It meets modern requirements for safety, thermal insulation and stability, while allowing the creation of really large entrance doors. It can also be an interesting alternative to traditional balcony or terrace doors. The pivot door can also be used in a single door configuration or in a multitude of doors for projects such as concert halls, restaurants, or schools.

The door can be panelled or glazed and open outwards or inwards. The door is structurally compatible with Masterline 8 Functional. It also has similar thermal insulation parameters. Doors of this type can be easily supplemented with automatic devices for opening and closing the door by means of a code or finger scan.

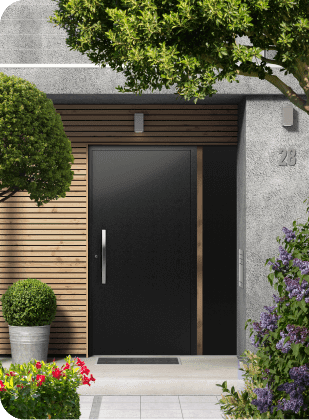

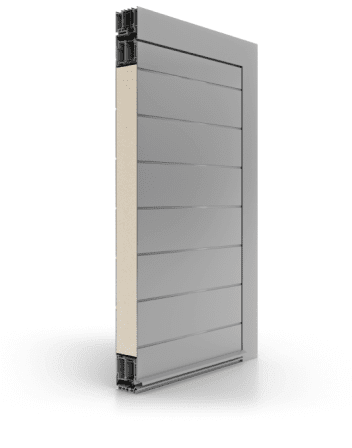

NEW! Aluminium Doors Masterline 8 Pivot are now available with Despiro door panels. Such a solution offers security, functionality
and a unique design. In this configuration, it is possible to make doors up to 3 m high, opening inwards and outwards. The system uses aluminium sheet with the best parameters and a thickness of 3 mm on both sides.

Available Despiro door panels in the Masterline 8 pivot system:



Masterline 8 Pivot:

Price list

“The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include changes in colours, accessories, dimensions, etc. Each change affects the final price of the product. The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!
