Name: uPVC Sliding Doors HST 85 mm
Brand: Aluplast

Specifications
Description
Colours
Files to download
Recently viewed products
Similar products
Our realizations

Specifications

Brand	Aluplast
Depth of the frame [mm]	197.5
Maximum thickness of the glazing unit [mm]	51
Profile thickness	Class A
Wind resistance	B3
Water resistance	7A
Acoustic insulation	33 - 45 dB
Air permeability	Class 4

Specifications - Read more

Profile thickness

The walls of the window chambers have different thickness, which determines the class of the profile. The thickness of the profiles is defined by the PN-EN 12608: 2004 standard. Profiles can have three classes: A, B and C. This parameter specifies the wall thickness of the profiles. The Class A profiles have outer walls with a thickness of ≥ 2.8 mm. Class B ≥ 2.5 mm. The standard does not define any requirements for class C sections. Class A profiles are the best choice as they provide us with the best window insulation. However, while selecting the so- called “warm” windows, you should also pay attention to such elements as the number of chambers, gaskets, type of the fittings, warm edge spacer, and glazing unit.

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows and doors is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Air permeability

It is the measurement showing how easily air can pass through a window or a door. The European Standard regarding air permeability in windows and doors is EN 12207. It classifies windows or doors according to their capability to prevent air travel through the system. This capability is measured on a scale, from Class 1 (less tightness) to Class 4 (higher tightness). A window or a door system with a higher level of air tightness is more energy-efficient, as less heated air escapes through it.

Acoustic insulation (Rw)

Acoustic insulation coefficient. It determines the insulation of the sliding doors against noise from the outside. The unit of measurement is decibels (dB). This parameter is influenced by: the thickness of the glazing in the glazing unit, the use of PVB laminated glass or the use of an acoustic foil.

Depth of the frame

A very important dimension, saying a lot about sliding doors quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the sliding doors.

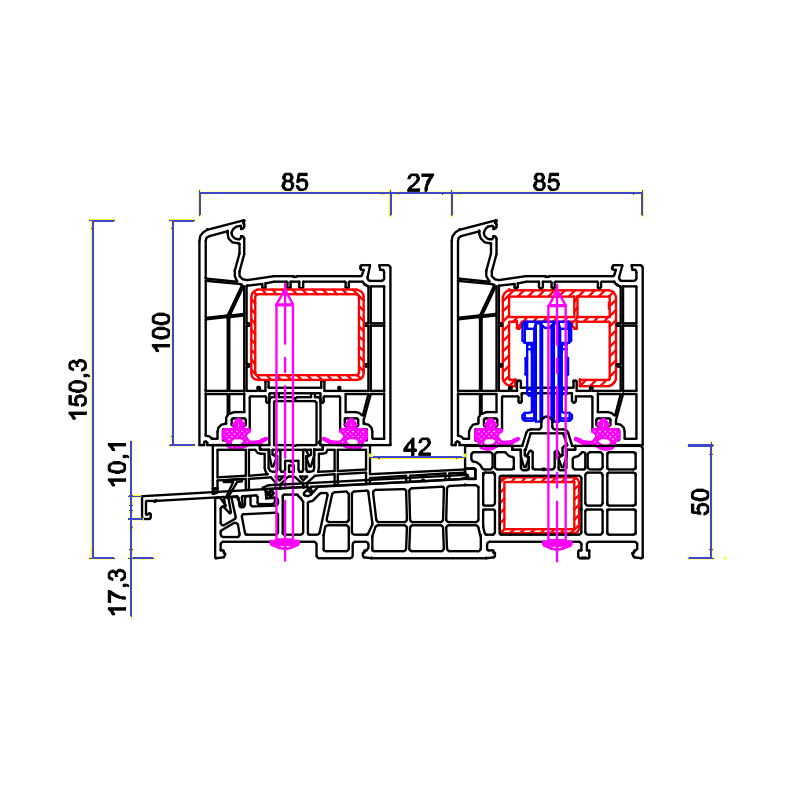

HST 85 mm

The ideal solution for those who want a comfortable connection between the interior and the terrace and a panoramic view achieved with a large glazed area. Thanks to the modular character of the structure, there is a possibility of three arbitrary product configurations, depending on the expected thermal parameters: Basic, Standard and Premium.

HST 85 mm system is available with a low level threshold (50 mm) as standard. It is enough to lift and move the movable sash of the HST window so that both floor levels – external and internal – form one plane. Thanks to this, the space becomes open and elegant. A low level threshold guarantees effective thermal insulation, trouble-free movement for people with disabilities and small children and trouble-free maintenance thanks to removable profiles. It also allows for trouble-free modernisation of lift and slide doors.

On request, there is an additional option available: a 50 mm level threshold with a linear drainage. It is an additional gutter placed on the outer side of the sliding system, that helps to effectively drain even large amounts of rainwater and get rid of accumulated impurities, such as: leaves, sticks or small twigs.

HST 85 mm – benefits

Window frame installation depth and threshold: 197.5 mm
Maximum sash dimensions: 3000 mm x 2700 mm
Depth of the frame: 140 mm
Fittings – lift & slide system up to 180 kg
Special window fittings ensuring that the sashes move freely and without any resistance against each other or against unopened parts of the structure
A special arrangement of overlapping strikers equipped with a system of butt joint gaskets for the adequate tightness of the space between the moving sashes of HST doors
A low level threshold of 50 mm as standard
Three different threshold solutions: Basic (Alu / PVC), Standard (Alu / PVC with thermal break) and Premium (Plastic GFK, filled with foam)
More freedom in disposing of the living space – the doors do not enter deep into the room after opening
The possibility of using energy-saving glazing units with a width of up to 51 mm allows to achieve very high thermal insulation of the structure
HST 85 mm FIXFRAME – a new solution with a very narrow frame in the solid part (FIX) for the greater amount of light coming in

Price list

“The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include changes in colours, accessories, dimensions, etc. Each change affects the final price of the product. The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

One active-leaf door

Size:

3000 x 2100

Price from:
- Double-glazed

  € 3593 net
- Triple-glazed

  € 4084 net
One active-leaf door

Size:

4000 X 2100

Price from:
- Double-glazed

  € 4422 net
- Triple-glazed

  € 5547 net

Colours

AP 01

AP 02

AP 05

AP 06

AP 11

AP 15

AP 19

AP 20

AP 21

AP 22

AP 23

AP 25

AP 27

AP 28

AP 29

AP 30

AP 32

AP 34

AP 40

AP 41

AP 43

AP 44

AP 47

AP 50

AP 52

AP 60

AP 61

AP 62

AP 63

AP 65

AP 70

AP 71

AP 72

AP 75

AP 79

AP 88

AP 94

AP 95

AP 102

AP 103

AP 104

AP 105

AP 106

AP 107

AP 108

AP 109

AP 110

AP 111

AP 112

AP 113

AP 115

AP 116

Show all (52)

Files to download

HST 85_horizontal

HST 85_vertical

HST 85 Premium

Level threshold 50 mm

Aluplast HST 85

Our realizations

Limerick

Ireland

uPVC Windows and Back Door IDEAL 4000 | Aluminium Doors Masterline 8 Pivot | uPVC Sliding Doors HST 85 mm | Limerick | #272

Meath

Ireland

Dublin

Ireland

uPVC windows IDEAL 5000 | uPVC Sliding Doors HST 85 mm | Dublin | #126

Galway

Ireland

uPVC Sliding Doors HST 85 mm | Aluminium Doors 34DP | uPVC windows IDEAL 8000 | Co. Galway | #102

Roscommon

Ireland

uPVC windows IDEAL 5000 | HST door SMART-SLIDE | Co. Roscommon | #51

Frequently asked questions

How do I get a quote?

First of all, you should send us your enquiry where you specify your chosen joinery parameters, dimensions and qualities.

In order to prepare a quote for you, we need the following details:

Model window/door (aluminium/uPVC) – [any specific U-value is required?]
Width x Height [mm]
Colour from internal/external side
Glazing: double/triple
Eircode (so we can check delivery cost)
Contact details, email address, phone number

In case you want the quote for installation services as well, let us know and specify whether you are interested in a new project or windows replacement.

Remember that at Fenbro, we have set minimum order values for each order.

The minimum order value for Fenbro products is as follows:

windows – at least 5 windows or the order value needs to be equal €2,000 net or more (for products)
uPVC doors/aluminium doors – the order value needs to be equal €2,000 net or more (for products)
composite doors/sliding systems – 1 product or more
VELUX products – at least 3 products

Next, we will provide the personalised quote for the purchase of joinery together with installation costs, delivery and lead-time.

Please send all the information and enquiries about our offer to the following e-mail address: info@fenbro.com

GET A FREE QUOTE

Do you deliver & install joinery?

We deliver joinery to Ireland every week. At the moment, we offer installation services only in Ireland.

Our offer includes:

Product
Delivery
Installation (Ireland) + after-sales service
You receive a 5-year guarantee on Windows/doors (10 years for VELUX) and 2 years for the fitting.

We do not have any showroom in your country. All our joinery is sent to customers directly from Poland.
Our Company is based in Warsaw (Poland) and we also have a local sales point and warehouse in Ostrołęka, Poland.
All joinery is produced by Polish producers.

What are the delivery costs?

The cost of each delivery is calculated individually. The cost of delivery depends on the weight and size of pallets and their number.

Please send all enquiries about our offer to the following e-mail address: info@fenbro.com

Do you have a price list?

We are selling complex products, tailored services and our customers often require a special solution. That’s why each of our products is personalised and we do not have the standard price list. Every product is quoted according to individual customer needs.

Please send all enquiries about our offer to the following e-mail address: info@fenbro.com

How does the payment for your service look like?

There are two payment options for our customers.

A) You can pay in two instalments:

50% when you accept the order
another 50% before the dispatch of the goods.

B) You can pay full (100% of the amount) in advance.*

*then we give you 2% discount

We only accept payments via bank transfer.

What is the warrantee/guarantee on your products?

All windows and doors purchased at FENBRO have a following full guarantee:

5 years for all our products
10 years for all VELUX products
2 years for the installation (with service provided by us)

In case of each sale, you get a sales contract together with an invoice. We always archive all invoices for 5 years as evidence of purchase.

Guarantee and complaints:

In case of any complaint, we will ask for photos and a description of what happened (preferably by an email). We are sending new products as fast as we can and in the meantime, we are taking care of the complaint. The typical length of time for complaint resolution is from 3 up to 4 weeks . You will get the spare parts within 7 -14 days.

Please remember that the transport also is fully insured so everything is secured at all stages. For the delivery, you get a CMR document. It is a confirmation of delivery a proof that the products were received in good condition. You have 48 hours to check the conditions of your order.

Depending on the type of the issue, we are sending spare parts, new products for replacement, or we refund the money.

Guarantee and DIY installation:

The guarantee is valid even if the window installation is carried out by our clients themselves or by an external company. The most important thing is that the installation is carried out in an artful manner and according to the installation instructions for the window.

Additionally, we offer support after the guarantee period is over. It means that if something happens with your joinery afterwards, we can get you all the necessary spare parts, ready-made products and tools to help you solve the issue (the service is chargeable at the end of the guarantee period).

Please note that if you choose your own fitter, you are responsible for providing them with correct measurements of the openings as well as products dimensions. We cannot be held responsible for any irregularities in this regard.

What is the minimum required order value?

At Fenbro, we have set minimum order values for each order. If you want us to start processing your quote request and your order, you should follow a minimum required order value.

The minimum order value for Fenbro products is as follows:

windows – at least 5 windows or the order value needs to be equal €2,000 net or more (for products)
uPVC doors/aluminium doors – the order value needs to be equal €2,000 net or more (for products)
composite doors/sliding systems – 1 product or more
VELUX products – at least 3 products

IMPORTANT INFO: VELUX roof windows are only an “addition” to our standard offer, i.e. if the customer buys vertical windows and/or doors, then they can choose VELUX windows as an add-on (according to the minimum required order value). Buying only VELUX roof windows is unfortunately impossible.
