Name: uPVC Window IDEAL 4000
Brand: Aluplast

Specifications
Description
Colours
Pricelist
Files to download
Recently viewed products

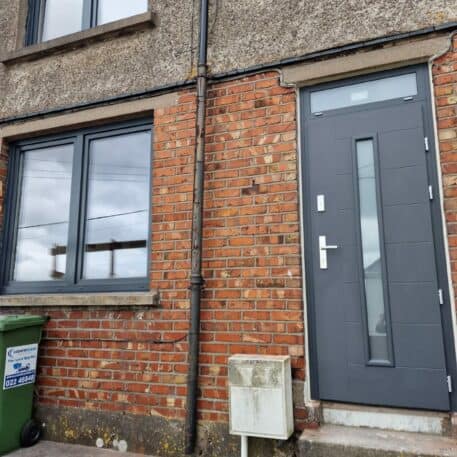

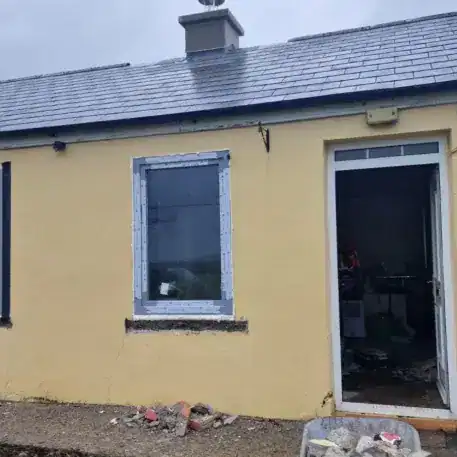

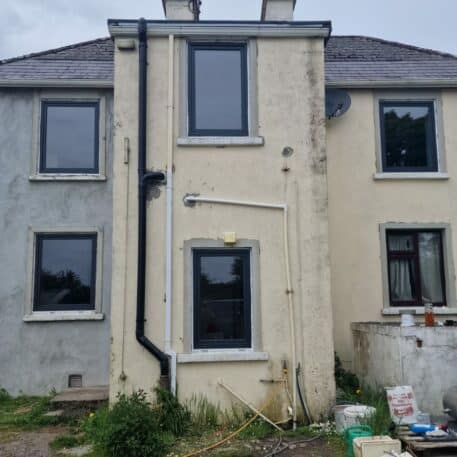

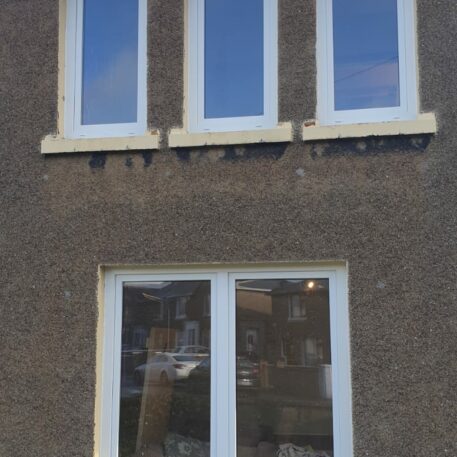

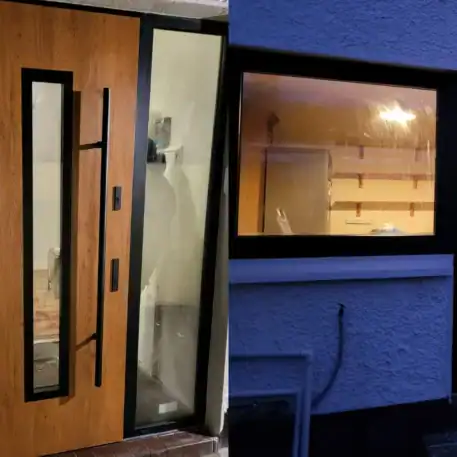

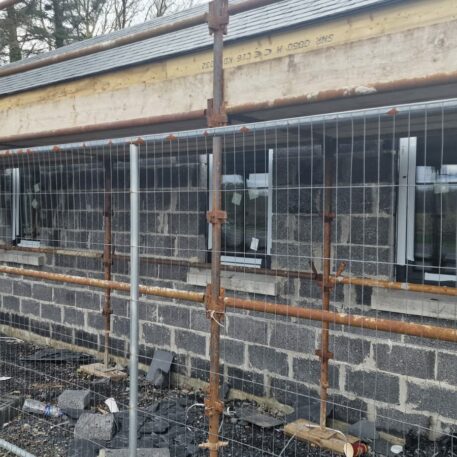

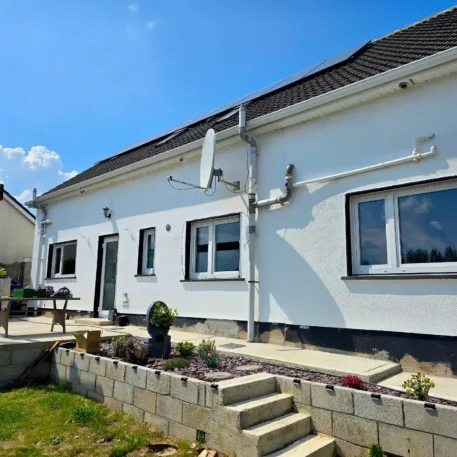

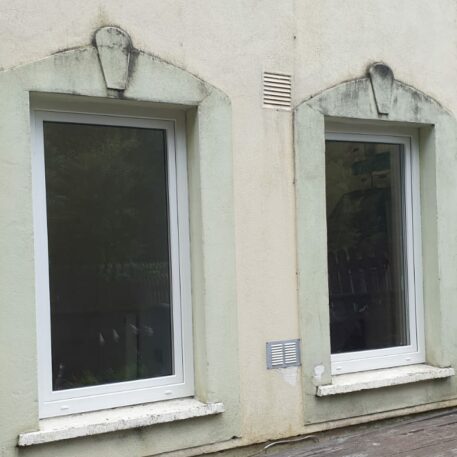

Realizations
Similar products

Specifications

Number of chambers	5
Depth of the frame [mm]	70
Profile thickness	Class B
Number of gaskets	2
Wind resistance	C4
Water resistance	5A
Acoustic insulation	34 - 45 db
Air permeability	Class 3
Brand	Aluplast
Maximum thickness of the glazing unit [mm]	42
Opening direction	Inwards
U-value	0.96 -1.3

Opening direction

There are two window opening directions possible: inwards or outwards. When you want to determine the window opening direction, you have to stand at the side where you can see the hinges. If you are standing outside the building and the windows open towards you, these are outward-opening windows. If, on the other hand, you are standing inside the building and the windows open towards you, these are inward-opening windows.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Number of chambers

The number of chambers in the window affects the thermal insulation of the window. The chambers keep air from circulating and in this way they create an additional insulating layer. Energy-saving (passive) windows most often come with a 6-chamber structure and a built-in depth of over 80 mm. Window chambers also increase the structural strength of a window and add to its overall stiffness

Number of gaskets

window gaskets prevent draughts and water from entering into your home. They are also a barrier for the outside noise and an effective way to keep warm air in – and thus, lower your energy bills. Two gaskets are necessary for the window to fulfil its function properly, while the central (third) gasket is not necessary. However, it has been proven that window structures with a central gasket are tighter, both in terms of air permeability and water-tightness, than structures without a middle gasket. Also, third gasket affects the improvement of the U-value parameter.

Profile thickness

The walls of the window chambers have different thickness, which determines the class of the profile. The thickness of the profiles is defined by the PN-EN 12608: 2004 standard. Profiles can have three classes: A, B and C. This parameter specifies the wall thickness of the profiles. The Class A profiles have outer walls with a thickness of ≥ 2.8 mm. Class B ≥ 2.5 mm. The standard does not define any requirements for class C sections. Class A profiles are the best choice as they provide us with the best window insulation. However, while selecting the so- called “warm” windows, you should also pay attention to such elements as the number of chambers, gaskets, type of the fittings, warm edge spacer, and glazing unit.

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Air permeability

It is the measurement showing how easily air can pass through a window or a door. The European Standard regarding air permeability in windows and doors is EN 12207. It classifies windows or doors according to their capability to prevent air travel through the system. This capability is measured on a scale, from Class 1 (less tightness) to Class 4 (higher tightness). A window or a door system with a higher level of air tightness is more energy-efficient, as less heated air escapes through it.

Uw (U-value)

The window’s heat transfer coefficient. It informs you about the level of window thermal insulation. The Uw (U- value) shows how much heat will penetrate 1 m2 of a window in one hour, with a difference between the temperatures on both sides of the window of one degree. This means that the lower the Uw coefficient, the better the window’s thermal insulation is.

Acoustic insulation (Rw)

Acoustic insulation coefficient. It determines the insulation of the window against noise from the outside. The unit of measurement is decibels (dB). This parameter is influenced by: the thickness of the glazing in the glazing unit, the use of PVB laminated glass or the use of an acoustic foil.

Depth of the frame

A very important dimension, saying a lot about window quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the window. In general, deeper window profiles also have more chambers. Standard depths: 5-chamber profiles: 70 mm, 6-chamber profiles: > 70 mm – 90 mm.

IDEAL 4000

The bestseller among affordable windows. The IDEAL 4000 profile series combines the modern technology with the highest comfort of living. Proven solid, durable construction which you can use for the larger building projects. Classic design and parameters are ideal for the regions with moderate climate and mild winters. Thanks to the reasonable price, it’s an ideal choice when you want to save on the purchase of window joinery.

Design

The classic, elegant lines in slim profiles with clear contours guarantee timeless elegance. If you are looking for unique possibilities of creating their windows, take a look at the Round-line series – where you can choose between a standard straight or rounded sash. Various types of glazing beads allow for additional styling of the window and matching the character of the interior. The universal IDEAL 4000 system works well both in modern architecture of single- and multi-family buildings, as well as in case of renovations. In the latter case, where it is often impossible to enlarge the window opening, there is a particularly important advantage: the reduced height of the frame and sash which increases the area of glazing and allows more light to enter your rooms.

IDEAL 4000 – benefits

Strong construction of profiles with a depth of 70 mm and large chambers for steel reinforcements
The multi-chamber construction for high thermal and acoustic insulation
Opening direction: inwards
Outstanding sound insulation up to sound transmission class IV (45 dB)
Special security hardware for the highest level of burglary protection
Different profile shapes for an individual design

Colours

Standard colours

AP 01

AP 02

AP 05

AP 06

AP 11

AP 15

AP 19

AP 20

AP 21

AP 23

AP 25

AP 27

AP 28

AP 29

AP 30

AP 32

AP 34

AP 40

AP 41

AP 43

AP 44

AP 47

AP 50

AP 52

AP 60

AP 61

AP 62

AP 63

AP 65

AP 70

AP 71

AP 72

AP 75

AP 79

AP 88

AP 94

AP 95

AP 102

AP 103

AP 104

AP 105

AP 106

AP 107

AP 108

AP 109

AP 110

AP 111

AP 112

AP 113

AP 115

AP 116

Price list

The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include accessories or custom sizes and dimensions. Additionally, each colour change affects the final price of the product in the following way:

Aluminium windows and sliding systems:

The Customer pays 3-5% more for a one-sided coating or two-sided coating.

uPVC windows:

The Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.

uPVC sliding doors:

The Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.

The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!
