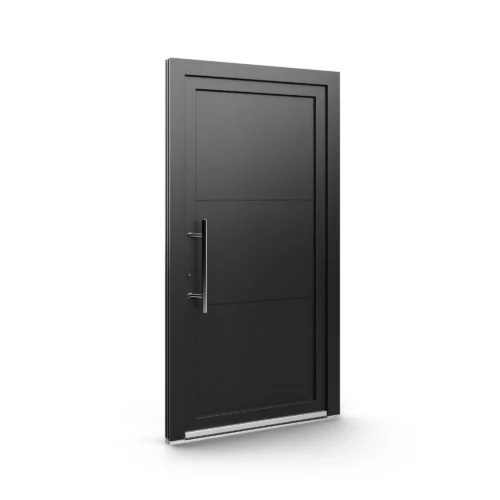

uPVC Doors EkoLine 109

Panel entrance doors are available in systems:

• panels made of HPL or aluminium sheet,
• two versions of the filling: CLASSIC (XPS extruded polystyrene) and PLUS (polyurethane foam and plywood),
• available thicknesses: 24, 36 or 48mm,
• HPL doors are veneered,
• Aluminium doors are lacquered,
• for 24mm filling – glazing with safety glass from outside,
• for 32 mm and 48 mm fillings – safety glass glazing on both sides,
• minimum/maximum dimensions depending on model and base material,
• Choice of decorations: flush stainless steel applications, corrugated panels.

We give our customers a choice of three-panel thicknesses:

24mm,
36mm,
48 mm.
Panels can be made of HPL board. The filling is available in two variants:

Filling Plus

thickness 24 mm (2/6/8/6/2) (HPL board aluminium/plywood/polyurethane foam/plywood/ HPL board),
thickness 36 mm (2/6/20/6/2) (HPL board/plywood/polyurethane foam/plywood/ HPL board),
48 mm thick (2/6/32/6/2) (HPL board/plywood/polyurethane foam/plywood/ HPL board).

Classic filling

Thickness 24 mm (2/20/2) (HPL/Polystyrene extruded XPS/ HPL),
Thickness 36 mm (2/32/2) (HPL/Polystyrene extruded XPS/Polystyrene board),
48 mm (2/44/2) thick (HPL/Polystyrene extruded XPS/Polystyrene HPL).
