uPVC Sliding Doors EvolutionDrive Plus+

Brand: Salamander

What you get

Energy-saving sliding system with high heat transfer and sound insulation coefficients
Maximum illumination of the room thanks to low profiles
Quiet sash sliding mechanism

Add to Compare

Specifications
Description
Colours
Pricelist
Files to download
Recently viewed products
Realizations
Similar products

Specifications

U-value	0.71
Depth of the frame [mm]	152
Maximum thickness of the glazing unit [mm]	49
Acoustic insulation	44 dB
Brand	Salamander

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Uw (U-value)

The window’s heat transfer coefficient. It informs you about the level of thermal insulation. The Uw (U- value) shows how much heat will penetrate 1 m2 of sliding doors in one hour, with a difference between the temperatures on both sides of the doors of one degree. This means that the lower the Uw coefficient, the better the window’s thermal insulation is.

Acoustic insulation (Rw)

Acoustic insulation coefficient. It determines the insulation of the sliding doors against noise from the outside. The unit of measurement is decibels (dB). This parameter is influenced by: the thickness of the glazing in the glazing unit, the use of PVB laminated glass or the use of an acoustic foil.

Depth of the frame

A very important dimension, saying a lot about sliding doors quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the sliding doors.

EvolutionDrive Plus+ is a uPVC sliding system designed to retain all the most important advantages of sliding solutions. It provides significant space savings and is much lighter compared to classic sliding doors, because it is characterised by a smaller installation depth, and is therefore perfectly suitable for use on upper floors. In addition, this energy-saving and ecological sliding system is distinguished by high heat transfer and sound insulation coefficients.

EvolutionDrive Plus+ uses special fittings that provide increased pressure of the sash to the frame around the entire circumference. Together with a system of three gaskets and a complete double seal around the perimeter, they ensure effective sealing, which translates into low thermal transmittance of the entire structure. The fittings also allow you to set the handle in the closed position at any leaf position. In this way, you can improve ventilation by creating a small gap or even create a passage for pets.

The system uses closed reinforcements made of galvanised steel with a thickness of 1.5 and 2.5 mm, thus increasing the static parameters of the structure and increasing its durability. Thanks to this, the maximum leaf area can be up to 4.8 m2.

EvolutionDrive Plus+:

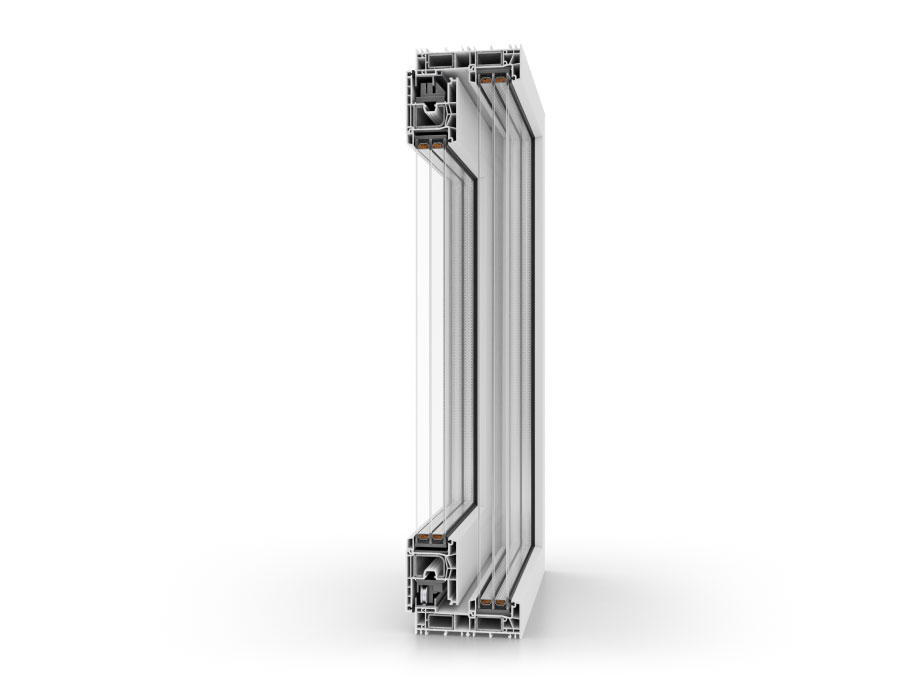

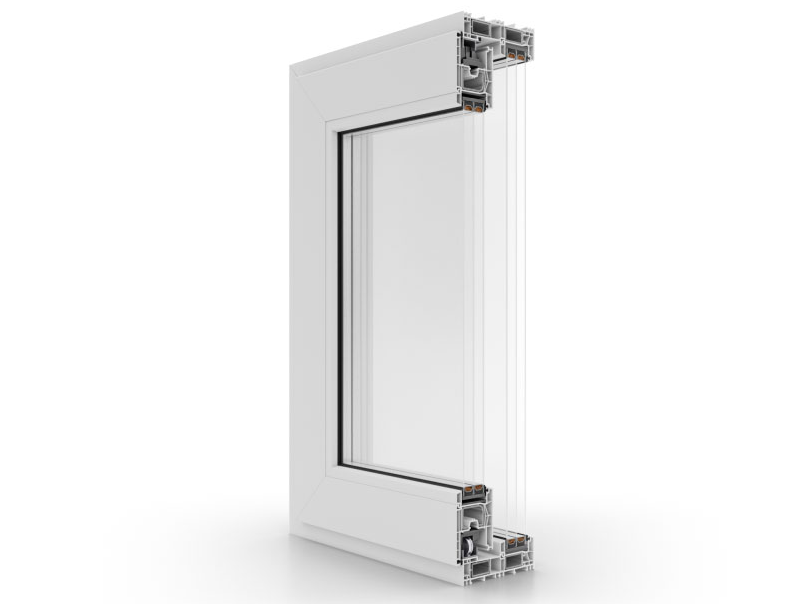

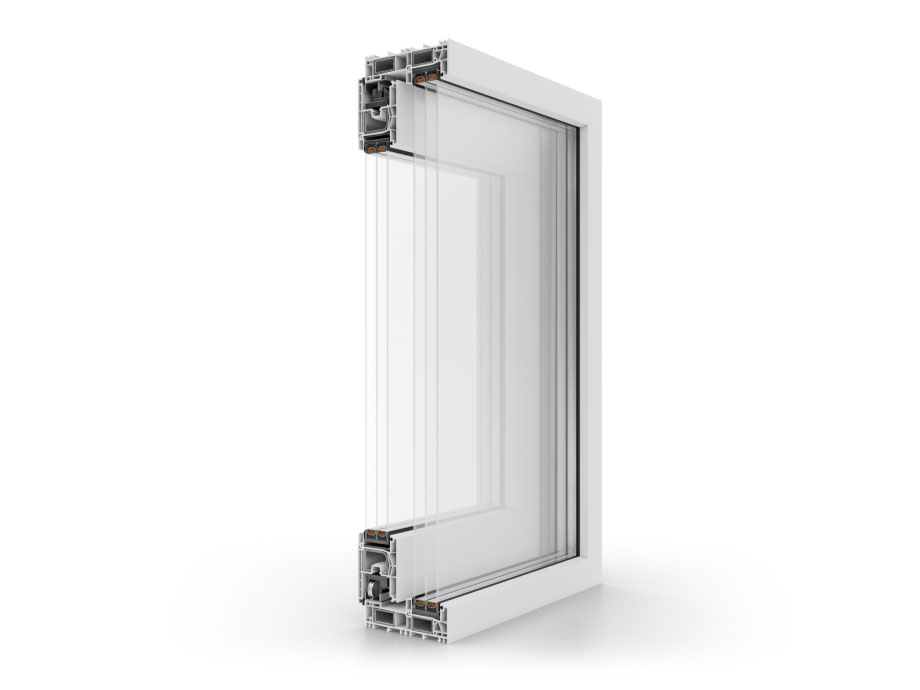

5-chamber sliding system with 3 gaskets
The best insulation parameters and excellent energy balance
Optimum protection against wind and heavy rain
Maximum illumination of the room thanks to low profiles
Classic design
Fittings hidden in the profile
No need for maintenance of fittings
Closed reinforcements made of galvanised steel increasing the static parameters of the structure and its durability
New concept of sliding systems: easy opening with little effort
Quiet sash sliding mechanism
Maximum security thanks to RC2 burglary resistance class
High level of sound insulation up to 44 dB
Installation depth 152 mm
Glazing units thickness: up to 49 mm wide
Maximum dimensions of the fixed leaf (HxL) – 2480 x 4000 mm
Maximum dimensions of the active leaf (HxL) – 2000 x 2400 mm
Maximum leaf weight – 170 kg

Opening schemes

Slide FIX FIX

Scheme A

Colours

Standard colours

SAL 03

SAL 11

SAL 18

SAL 19

SAL 21

SAL 25

SAL 26

SAL 27

SAL 33

SAL 37

SAL 41

SAL 42

SAL 43

SAL 50

SAL 51

SAL 52

SAL 55

SAL 59

SAL 67

SAL 69

SAL 71

SAL 72

SAL 73

SAL 74

SAL 78

SAL 84

SAL 87

SAL 88

SAL 90

SAL 92

SAL 93

SAL 94

SAL 98

SAL 107

SAL 108

SAL 109

SAL 110

SAL 112

SAL 113

SAL 115

SAL 116

Price list

The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include accessories or custom sizes and dimensions. Additionally, each colour change affects the final price of the product in the following way:

Aluminium windows and sliding systems:

The Customer pays 3-5% more for a one-sided coating or two-sided coating.

uPVC windows:

The Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.

uPVC sliding doors:

The Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.

The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

One active-leaf door

Size:	3000 x 2100
Double-glazed Price from:	€ 1806 net
Triple-glazed Price from:	€ 2377 net

One active-leaf door

Size:	4000 x 2100
Double-glazed Price from:	€ 2709 net
Triple-glazed Price from:	€ 3645 net

Files to download

Salamander-EvolutionDrive-Plus_CROSS-SECTION

EvolutionDrivePlus_technical drawing

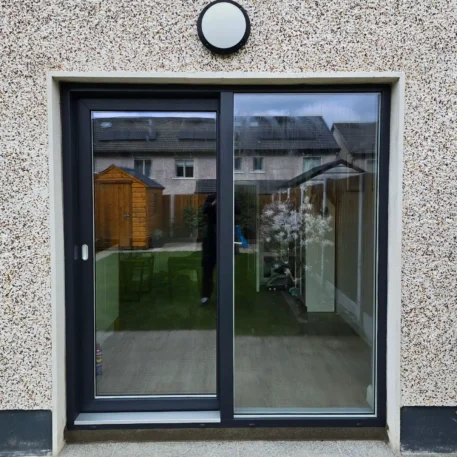

This product in realizations

uPVC Windows and Back Doors Salamander BluEvolution 82 | uPVC Sliding Doors EvolutionDrive Plus+ | Wikęd Steel Composite Doors model S2 Product line: OPTIMUM TERMO | Dublin | #442

Dublin

Ireland

uPVC Windows Salamander BluEvolution 82 | uPVC Sliding Doors EvolutionDrive Plus+ | Wikęd Steel Composite Doors 23 Product line: OPTIMUM TERMO | Galway | #429

Galway

Ireland

uPVC Windows and Back Doors Salamander BluEvolution 82 | uPVC Sliding Doors EvolutionDrive Plus+ | Wikęd Steel Composite Doors S2 Product line: OPTIMUM TERMO | Dublin | #425

Dublin

Ireland

uPVC Windows and Back Doors Salamander BluEvolution 82 | uPVC Sliding Doors EvolutionDrive Plus+ | Wikęd Steel Composite Doors Glass Loft 02A Product line: OPTIMUM TERMO | Longford | #419

Longford

Ireland

uPVC Windows Salamander BluEvolution 82 | uPVC Sliding Doors Evolution Drive Plus+ | Galway | #399

Galway

Ireland

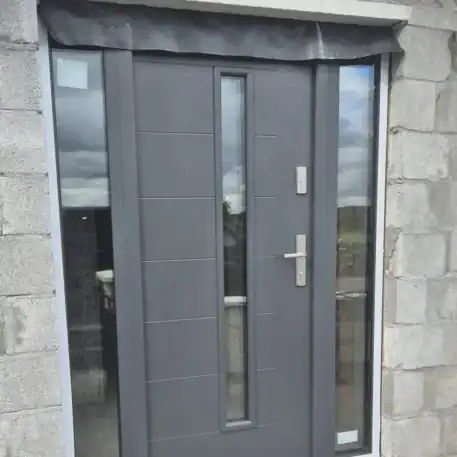

uPVC Windows and Back Doors Salamander greenEvolution 76 3D | uPVC Sliding Doors EvolutionDrive Plus+ | Wikęd Steel Composite Doors model 42 Product line: OPTIMUM TERMO | Tipperary | #395
