uPVC Sliding Doors Synego HST

Brand: Rehau

What you get

Easy, intuitive handling supported by advanced lift-and-slide hardware
Impressive sliding door system up to 10 metres wide
A perfect solution for terraces, garden access or modern extensions

Add to Compare

Specifications
Description
Colours
Pricelist
Recently viewed products
Similar products

Specifications

Depth of the frame [mm]	190
Maximum thickness of the glazing unit [mm]	51
Profile thickness	Class A
Wind resistance	B3
Water resistance	9A
Acoustic insulation	43 dB
Air permeability	Class 4
Brand	Rehau

Profile thickness

The walls of the window chambers have different thickness, which determines the class of the profile. The thickness of the profiles is defined by the PN-EN 12608: 2004 standard. Profiles can have three classes: A, B and C. This parameter specifies the wall thickness of the profiles. The Class A profiles have outer walls with a thickness of ≥ 2.8 mm. Class B ≥ 2.5 mm. The standard does not define any requirements for class C sections. Class A profiles are the best choice as they provide us with the best window insulation. However, while selecting the so- called “warm” windows, you should also pay attention to such elements as the number of chambers, gaskets, type of the fittings, warm edge spacer, and glazing unit.

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows and doors is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Air permeability

It is the measurement showing how easily air can pass through a window or a door. The European Standard regarding air permeability in windows and doors is EN 12207. It classifies windows or doors according to their capability to prevent air travel through the system. This capability is measured on a scale, from Class 1 (less tightness) to Class 4 (higher tightness). A window or a door system with a higher level of air tightness is more energy-efficient, as less heated air escapes through it.

Acoustic insulation (Rw)

Acoustic insulation coefficient. It determines the insulation of the sliding doors against noise from the outside. The unit of measurement is decibels (dB). This parameter is influenced by: the thickness of the glazing in the glazing unit, the use of PVB laminated glass or the use of an acoustic foil.

Depth of the frame

A very important dimension, saying a lot about sliding doors quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the sliding doors.

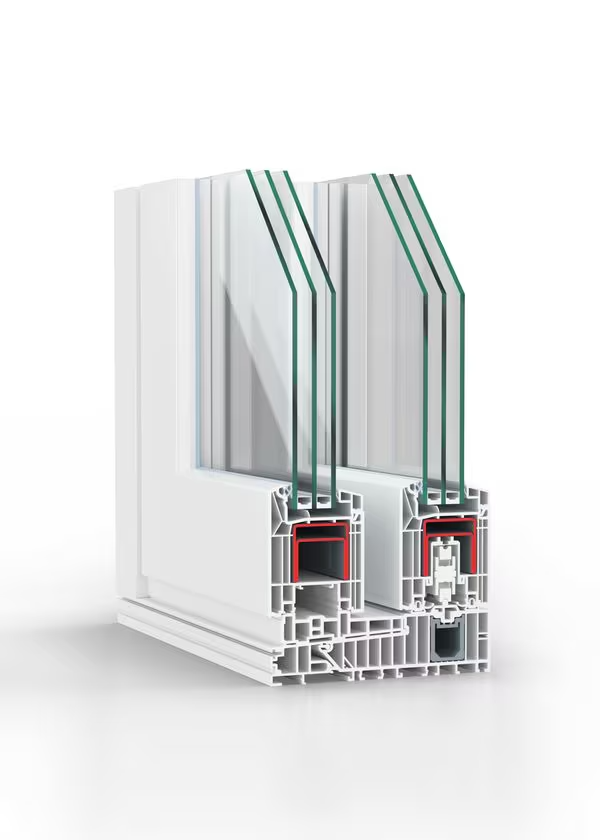

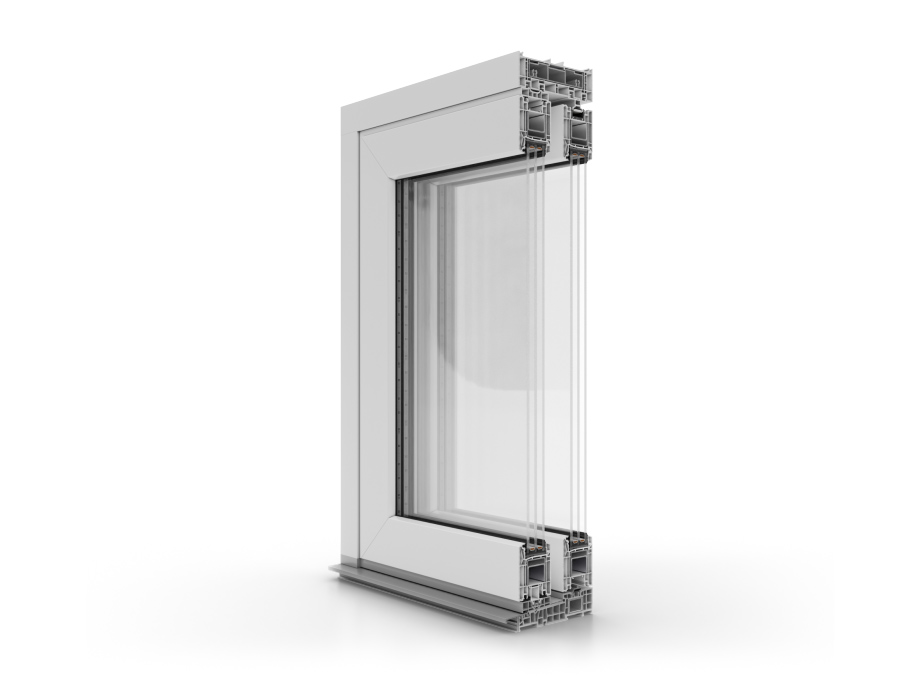

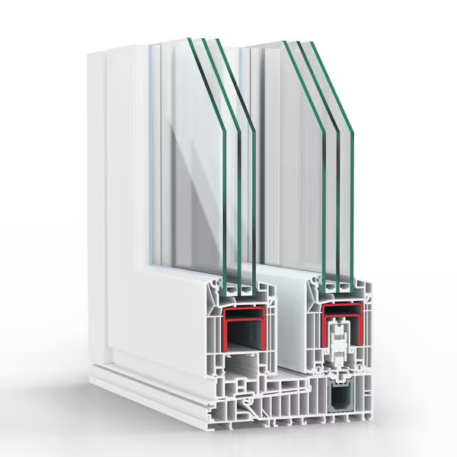

SYNEGO HST

SYNEGO HST is the ideal solution for homeowners seeking a seamless connection between indoor and outdoor living spaces, with impressive glazed surfaces and reliable performance. Thanks to the system’s modern uPVC profiles and advanced lift-and-slide fittings, even large and heavy sashes move smoothly and effortlessly.

SYNEGO HST makes it possible to create panoramic openings up to 5 metres wide using a single sliding sash, or to design patio doors with a total width of up to 10 metres and a height of up to 2.7 metres. The system offers excellent thermal and acoustic insulation, with Uw value reaching up to 0.86 W/m²K and sound reduction of up to 43 dB. This ensures comfort in both hot summers and cold winters, while also significantly reducing outside noise. Optional anti-burglary features provide increased security, and a low threshold guarantees safe, barrier-free access.

An optional Panorama variant is available, which features slimmer profiles and a larger glazed surface for even more daylight. Combined with a wide range of colours and durable HDF-finished profiles, SYNEGO HST provides both design flexibility and long-term performance.

SYNEGO HST – benefits

Frame installation depth: 190 mm (frame) / 80 mm (sash)
Build-up height – frame/sash: 179 mm (103 mm with Panorama sash)
Maximum sash dimensions: 3000 × 2600 mm
Maximum overall construction size: up to 10 metres wide and 2.7 metres high
Excellent thermal insulation: U-value up to 0.86 W/m²K
Glazing thickness: up to 51 mm
Maximum sash weight: up to 400 kg (tandem solution)
Lift-and-slide system with advanced hardware for easy operation
Optional Panorama variant with slimmer profiles and increased glazed area
Burglary resistance up to RC2
HDF surface finishing for a smoother and more durable look
Wide selection of colours, including wood-effect and modern tones
EcoPuls certified – profiles made with 40–75% recycled uPVC content

Opening schemes

Scheme A

Colours

Standard colours

REH 01

REH 02

REH 03

REH 04

REH 05

REH 06

REH 07

REH 08

REH 09

REH 10

REH 11

REH 12

REH 13

REH 14

REH 15

REH 16

REH 17

REH 18

REH 19

REH 20

REH 21

REH 22

REH 23

REH 24

REH 25

REH 26

REH 27

REH 28

REH 29

REH 30

REH 31

REH 32

REH 33

REH 34

REH 35

REH 36

REH 37

REH 38

REH 39

REH 40

REH 41

Price list

The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include accessories or custom sizes and dimensions. Additionally, each colour change affects the final price of the product in the following way:

Aluminium windows and sliding systems:

The Customer pays 3-5% more for a one-sided coating or two-sided coating.

uPVC windows:

The Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.

uPVC sliding doors:

The Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.

The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

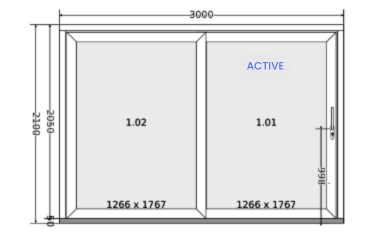

One active-leaf door

Size:	3000 x 2100
Double-glazed Price from:	€ 3163 net
Triple-glazed Price from:	€ 3392 net

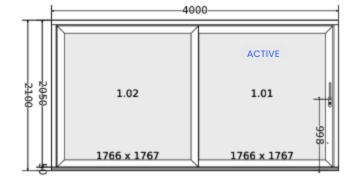

One active-leaf door

Size:	4000 x 2100
Triple-glazed Price from:	€ 3971 net

Frequently Asked Questions

First of all, you should send us your enquiry where you specify your chosen joinery parameters, dimensions and qualities. In order to prepare a quote for you, we need the following details:

Model window/door (aluminium/uPVC) - [any specific U-value is required?]
Width x Height [mm]
Colour from internal/external side
Glazing: double/triple
Eircode (so we can check delivery cost)
Contact details, email address, phone number

In case you want the quote for installation services as well, let us know and specify whether you are interested in a new project or windows replacement. Next, we will provide the personalised quote for the purchase of joinery together with installation costs, delivery and lead-time. Please send all the information and enquiries about our offer to the following e-mail address: [email protected]

We are selling complex products, tailored services and our customers often require a special solution. That's why each of our products is personalised and we do not have the standard price list. Every product is quoted according to individual customer needs. Please send all enquiries about our offer to the following e-mail address: [email protected]

At the moment, the estimated lead time for specific product categories is as follows:

uPVC windows and doors, shutters: up to 7 weeks
Velux roof windows, blinds & accessories: up to 8 weeks
Aluminium windows, doors: up to 7 weeks
Steel doors: up to 8 weeks
Garage Doors: up to 7 weeks

Additionally, for every category, you have to count in 5 days for delivery time.
