uPVC Window Ideal Neo MD

Brand: Aluplast

What you get

A unique design with exceptional static and thermal parameters
Centre gasket for excellent sound insulation
Glazing with packets up to 52 mm wide

Add to Compare

Specifications
Description
Colours
Pricelist
Files to download
Recently viewed products
Realizations
Similar products

Specifications

Number of chambers	5
Depth of the frame [mm]	76
U-value	0.79
Maximum thickness of the glazing unit [mm]	52
Number of gaskets	3
Brand	Aluplast

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Number of chambers

The number of chambers in the window affects the thermal insulation of the window. The chambers keep air from circulating and in this way they create an additional insulating layer. Energy-saving (passive) windows most often come with a 6-chamber structure and a built-in depth of over 80 mm. Window chambers also increase the structural strength of a window and add to its overall stiffness

Number of gaskets

window gaskets prevent draughts and water from entering into your home. They are also a barrier for the outside noise and an effective way to keep warm air in – and thus, lower your energy bills. Two gaskets are necessary for the window to fulfil its function properly, while the central (third) gasket is not necessary. However, it has been proven that window structures with a central gasket are tighter, both in terms of air permeability and water-tightness, than structures without a middle gasket. Also, third gasket affects the improvement of the U-value parameter.

Uw (U-value)

The window’s heat transfer coefficient. It informs you about the level of window thermal insulation. The Uw (U- value) shows how much heat will penetrate 1 m2 of a window in one hour, with a difference between the temperatures on both sides of the window of one degree. This means that the lower the Uw coefficient, the better the window’s thermal insulation is.

Ideal Neo MD with middle gasket is a unique and innovative system, characterised by simple structures, strong angles and narrow window rebates. They are perfect for newly built and renovated buildings. One of the additional options is the “bonding inside” technology, which results in exceptional static and thermal parameters. The permanent bonding of the pane and the sash reduces the risk of bending and distortion of the sash. This technology ensures the comfort of using the windows for many years.

Ideal Neo MD:

Installation depth 76 mm
Glazing with packets up to 52 mm wide (standard 48 mm insert)
Centre gasket which provides excellent sound insulation
Low heat transfer coefficient Uw=0.79 allowing for energy savings and lower heating costs
5 anti-theft points per leaf
Only 110 mm frame/sash folding for more light in the room
Simple, cubist shape ensuring easy adjustment to any interior
Visual lightness of the structure
Available core colours: brown, anthracite, white

Colours

Standard colours

AP 01

AP 02

AP 05

AP 06

AP 11

AP 15

AP 19

AP 20

AP 21

AP 23

AP 25

AP 27

AP 28

AP 29

AP 30

AP 32

AP 34

AP 40

AP 41

AP 43

AP 44

AP 47

AP 50

AP 52

AP 60

AP 61

AP 62

AP 63

AP 65

AP 70

AP 71

AP 72

AP 75

AP 79

AP 88

AP 94

AP 95

AP 102

AP 103

AP 104

AP 105

AP 106

AP 107

AP 108

AP 109

AP 110

AP 111

AP 112

AP 113

AP 115

AP 116

Price list

The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include accessories or custom sizes and dimensions. Additionally, each colour change affects the final price of the product in the following way:

Aluminium windows and sliding systems:

The Customer pays 3-5% more for a one-sided coating or two-sided coating.

uPVC windows:

The Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.

uPVC sliding doors:

The Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.

The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

Fixed window

Size:	1000 x 1000
Double-glazed Price from:	€ 107 net
Triple-glazed Price from:	€ 121 net

Tilt and turn window

Size:	1000 x 1000
Double-glazed Price from:	€ 153 net
Triple-glazed Price from:	€ 165 net

Double sash tilt and turn window

Size:	1000 x 1000
Double-glazed Price from:	€ 217 net
Triple-glazed Price from:	€ 225 net

Files to download

Ideal NEO

This product in realizations

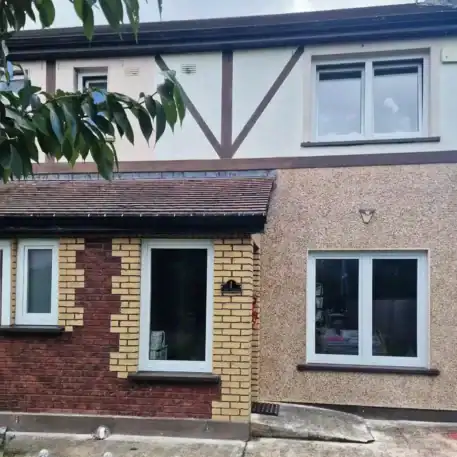

uPVC Windows and French Doors Ideal Neo MD | Limerick | #400

Limerick

Ireland

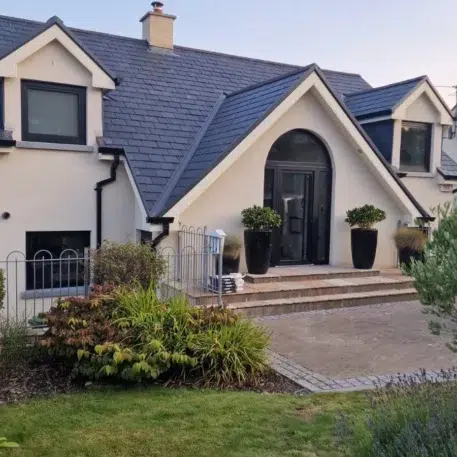

uPVC Windows, French door, Back door | Ideal Neo MD | Kerry | #257

Kerry

Ireland

Frequently Asked Questions

First of all, you should send us your enquiry where you specify your chosen joinery parameters, dimensions and qualities. In order to prepare a quote for you, we need the following details:

Model window/door (aluminium/uPVC) - [any specific U-value is required?]
Width x Height [mm]
Colour from internal/external side
Glazing: double/triple
Eircode (so we can check delivery cost)
Contact details, email address, phone number

In case you want the quote for installation services as well, let us know and specify whether you are interested in a new project or windows replacement. Next, we will provide the personalised quote for the purchase of joinery together with installation costs, delivery and lead-time. Please send all the information and enquiries about our offer to the following e-mail address: [email protected]

We are selling complex products, tailored services and our customers often require a special solution. That's why each of our products is personalised and we do not have the standard price list. Every product is quoted according to individual customer needs. Please send all enquiries about our offer to the following e-mail address: [email protected]

At the moment, the estimated lead time for specific product categories is as follows:

uPVC windows and doors, shutters: up to 7 weeks
Velux roof windows, blinds & accessories: up to 8 weeks
Aluminium windows, doors: up to 7 weeks
Steel doors: up to 8 weeks
Garage Doors: up to 7 weeks

Additionally, for every category, you have to count in 5 days for delivery time.
