Aluminium Window MB-79N E

Ratings
Brand: Aluprof
What you get
  • An economical window system with a one-component central gasket
  • Glazing thickness up to 63 mm
  • Depth of the frame: 70 mm
View specification
Lead time: up to 8 weeks Find out more

Guarantee included at purchase Find out more

Specifications

BrandAluprof
Depth of the frame [mm]70
Maximum thickness of the glazing unit [mm]63
Number of chambers3
Number of gaskets2
Opening directionInwards
U-value1.5
Wind resistanceC5
Water resistanceE 1950
Air permeabilityClass 4
Specifications - Read more

Opening direction

There are two window opening directions possible: inwards or outwards. When you want to determine the window opening direction, you have to stand at the side where you can see the hinges. If you are standing outside the building and the windows open towards you, these are outward-opening windows. If, on the other hand, you are standing inside the building and the windows open towards you, these are inward-opening windows.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Number of chambers

The number of chambers in the window affects the thermal insulation of the window. The chambers keep air from circulating and in this way they create an additional insulating layer. Energy-saving (passive) windows most often come with a 6-chamber structure and a built-in depth of over 80 mm. Window chambers also increase the structural strength of a window and add to its overall stiffness

Number of gaskets

window gaskets prevent draughts and water from entering into your home. They are also a barrier for the outside noise and an effective way to keep warm air in – and thus, lower your energy bills. Two gaskets are necessary for the window to fulfil its function properly, while the central (third) gasket is not necessary. However, it has been proven that window structures with a central gasket are tighter, both in terms of air permeability and water-tightness, than structures without a middle gasket. Also, third gasket affects the improvement of the U-value parameter.

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Air permeability

It is the measurement showing how easily air can pass through a window or a door. The European Standard regarding air permeability in windows and doors is EN 12207. It classifies windows or doors according to their capability to prevent air travel through the system. This capability is measured on a scale, from Class 1 (less tightness) to Class 4 (higher tightness). A window or a door system with a higher level of air tightness is more energy-efficient, as less heated air escapes through it.

Uw (U-value)

The window’s heat transfer coefficient. It informs you about the level of window thermal insulation. The Uw (U- value) shows how much heat will penetrate 1 m2 of a window in one hour, with a difference between the temperatures on both sides of the window of one degree. This means that the lower the Uw coefficient, the better the window’s thermal insulation is.

Depth of the frame

A very important dimension, saying a lot about window quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the window. In general, deeper window profiles also have more chambers. Standard depths: 5-chamber profiles: 70 mm, 6-chamber profiles: > 70 mm – 90 mm.

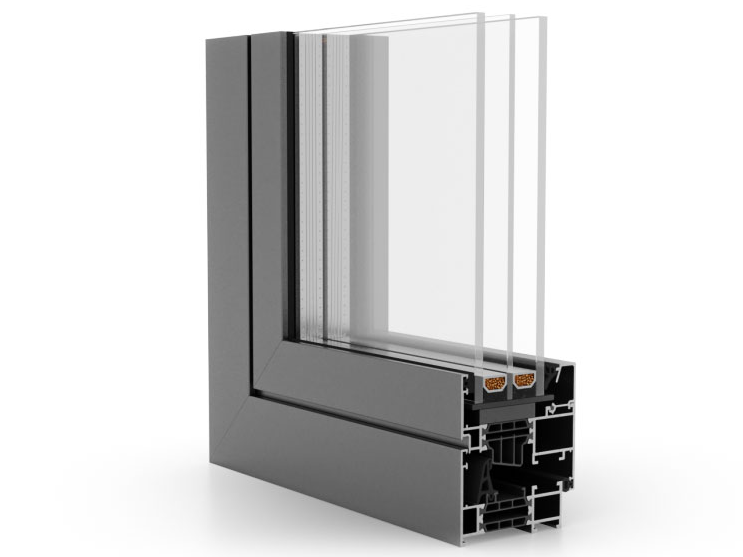

An economical window and door system with a one-component central gasket. It meets the increased requirements of thermal insulation and creates enormous design possibilities. It can be used to make structures such as: fixed, side-hung, tilt, tilt and turn, tilt and slide windows, as well as single and double-leaf external doors and display door solutions. It is durable, resistant and has excellent thermal and acoustic insulation properties.

MB-79N E :

Price list

“The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include changes in colours, accessories, dimensions, etc. Each change affects the final price of the product. The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!
