uPVC Window IDEAL 5000

Ratings
Brand: Aluplast
What you get
  • Centre gasket system with three sealing levels
  • Safetec inside – the additional interior profile web for the third gasket for improved thermal insulation and burglary protection
  • Double and triple glazing available in thicknesses up to 42 mm
View specification

This product

uPVC Window IDEAL 5000

uPVC Window IDEAL 5000

vs

Other products from this category

IDEAL 5000

IDEAL 5000 windows combine modern design with very good technical parameters. They offer perfect thermal and acoustic insulation as well as the highest level of burglary protection and comforting security. Harmonious shapes, solid construction and attractive design guarantee timeless elegance. The IDEAL 5000 system is a classic structure with a central seal. It is also available in a version with a lower frame, thanks to which you can easily light up any room.

IDEAL 5000 – benefits

  • Centre sealing system with three gaskets
  • The fixed interior profile web for the third gasket all around the window frame – it improves thermal insulation and prevents the sash from being forced open easily
  • Supplemented with a double-glazed unit – but it can be successfully replaced by a triple-glazed unit for lower thermal transmittance coefficient of the window
  • Better values of thermal insulation can also be reached with a warm edge spacer (added as standard to triple-glazed windows)
  • Embedded hardware channel for the highest level of burglary protection
  • 5 chamber profile in the standard combination
  • Available in a wide range of smooth and wood-like colours

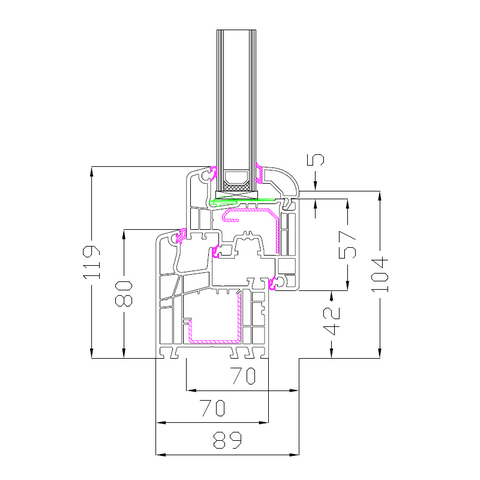

Specifications

BrandAluplast
Depth of the frame [mm]70
Maximum thickness of the glazing unit [mm]42
Number of chambers5
Number of gaskets3
Opening directionInwards
U-value0.87 - 1.2
Profile thicknessClass B
Wind resistanceC5/B5
Water resistance6A
Acoustic insulation29-38 db
Air permeabilityClass 3
Specification - Read more

Uw (U-value)

The window’s heat transfer coefficient. It informs you about the level of window thermal insulation. The Uw (U- value) shows how much heat will penetrate 1 m2 of a window in one hour, with a difference between the temperatures on both sides of the window of one degree. This means that the lower the Uw coefficient, the better the window’s thermal insulation is.

Acoustic insulation (Rw)

Acoustic insulation coefficient. It determines the insulation of the window against noise from the outside. The unit of measurement is decibels (dB). This parameter is influenced by: the thickness of the glazing in the glazing unit, the use of PVB laminated glass or the use of an acoustic foil.

Opening direction

There are two window opening directions possible: inwards or outwards. When you want to determine the window opening direction, you have to stand at the side where you can see the hinges. If you are standing outside the building and the windows open towards you, these are outward-opening windows. If, on the other hand, you are standing inside the building and the windows open towards you, these are inward-opening windows.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Number of chambers

The number of chambers in the window affects the thermal insulation of the window. The chambers keep air from circulating and in this way they create an additional insulating layer. Energy-saving (passive) windows most often come with a 6-chamber structure and a built-in depth of over 80 mm. Window chambers also increase the structural strength of a window and add to its overall stiffness

Number of gaskets

window gaskets prevent draughts and water from entering into your home. They are also a barrier for the outside noise and an effective way to keep warm air in – and thus, lower your energy bills. Two gaskets are necessary for the window to fulfil its function properly, while the central (third) gasket is not necessary. However, it has been proven that window structures with a central gasket are tighter, both in terms of air permeability and water-tightness, than structures without a middle gasket. Also, third gasket affects the improvement of the U-value parameter.

Profile thickness

The walls of the window chambers have different thickness, which determines the class of the profile. The thickness of the profiles is defined by the PN-EN 12608: 2004 standard. Profiles can have three classes: A, B and C. This parameter specifies the wall thickness of the profiles. The Class A profiles have outer walls with a thickness of ≥ 2.8 mm. Class B ≥ 2.5 mm. The standard does not define any requirements for class C sections. Class A profiles are the best choice as they provide us with the best window insulation. However, while selecting the so- called “warm” windows, you should also pay attention to such elements as the number of chambers, gaskets, type of the fittings, warm edge spacer, and glazing unit.

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Air permeability

It is the measurement showing how easily air can pass through a window or a door. The European Standard regarding air permeability in windows and doors is EN 12207. It classifies windows or doors according to their capability to prevent air travel through the system. This capability is measured on a scale, from Class 1 (less tightness) to Class 4 (higher tightness). A window or a door system with a higher level of air tightness is more energy-efficient, as less heated air escapes through it.

Colours

AP 01
AP 02
AP 05
AP 06
AP 11
AP 15
AP 19
AP 20
AP 21
AP 23
AP 25
AP 27
AP 28
AP 29
AP 30
AP 32
AP 34
AP 40
AP 41
AP 43
AP 44
AP 47
AP 50
AP 52
AP 60
AP 61
AP 62
AP 63
AP 65
AP 70
AP 71
AP 75
AP 79
AP 88
AP 94
AP 95
AP 102
AP 106
AP 115
Show all (39)

Files to download
