Aluminium Sliding Doors MB-59HS

Ratings
Brand: Aluprof
What you get
  • The possibility to create large sashes up to 2.8 m high and 3.3 m wide
  • Low-level threshold options
  • Robust 3-chambered profiles with wide thermal breaks



View specification
Lead time: up to 8 weeks Find out more

Guarantee included at purchase Find out more

Specifications

BrandAluprof
Depth of the frame [mm]120 - 199
Maximum thickness of the glazing unit [mm]42
Wind resistanceC2
Water resistance1A
Air permeabilityClass 2
Specifications - Read more

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows and doors is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Air permeability

It is the measurement showing how easily air can pass through a window or a door. The European Standard regarding air permeability in windows and doors is EN 12207. It classifies windows or doors according to their capability to prevent air travel through the system. This capability is measured on a scale, from Class 1 (less tightness) to Class 4 (higher tightness). A window or a door system with a higher level of air tightness is more energy-efficient, as less heated air escapes through it.

Depth of the frame

A very important dimension, saying a lot about sliding doors quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the sliding doors.

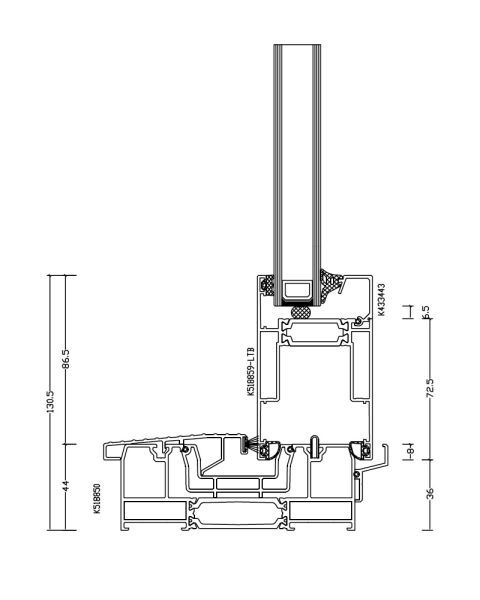

MB-59HS

The MB-59 HS system is a perfect choice if you’re looking for energy conservation and environment protection. It is the optimised solution in terms of construction and and profiles and frames dimensions. Lift and slide doors based on the MB-59 HS system can successfully replace traditional balcony windows. They provide enormous constructional possibilities and assure an extraordinary look – both to the interiors and the entire facade.

MB-59HS – benefits

  • Two types of window frame: 2-rails/ 3-rails
  • The depth of the frame: 120 mm (with double running rail profiles) or 199 mm (with triple running rail profiles)
  • Maximum sash dimensions: 3300 mm x 2800 mm
  • Fittings – lift&slide system: up to 300 kg
  • Sash depth: 59 mm
  • Burglary resistance: RC2
  • Low aluminium threshold with a thermal barrier
  • Glazing in units up to 42 mm wide
  • The possibility to create even 6-wing structures
  • Robust 3-chambered profiles with insulating chamber equipped with wide thermal breaks in the central part
  • High water and air-tightness thanks to specially shaped gaskets and hardware
  • Fixed lites fabricated with glass mounted directly to the frame
  • Simplified construction technology to reduce time and costs of fabrication

Price list

“The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include changes in colours, accessories, dimensions, etc. Each change affects the final price of the product. The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!
