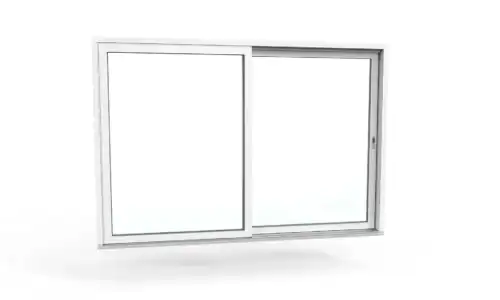

uPVC Sliding Doors VEKAMOTION 82 HST

Brand: Veka

What you get

Large glazing allowing plenty of natural light into the interior
The best thermal insulation parameters thanks to glazing units up to 54 mm
Thresholdless installation for comfort and convenience of use

Add to Compare

Specifications
Description
Colours
Pricelist
Files to download
Recently viewed products
Similar products

Specifications

Depth of the frame [mm]	82
U-value	0.78
Maximum thickness of the glazing unit [mm]	54
Profile thickness	Class A
Wind resistance	C4
Water resistance	9A
Brand	Veka

Profile thickness

The walls of the window chambers have different thickness, which determines the class of the profile. The thickness of the profiles is defined by the PN-EN 12608: 2004 standard. Profiles can have three classes: A, B and C. This parameter specifies the wall thickness of the profiles. The Class A profiles have outer walls with a thickness of ≥ 2.8 mm. Class B ≥ 2.5 mm. The standard does not define any requirements for class C sections. Class A profiles are the best choice as they provide us with the best window insulation. However, while selecting the so- called “warm” windows, you should also pay attention to such elements as the number of chambers, gaskets, type of the fittings, warm edge spacer, and glazing unit.

Wind resistance

It is one of the most important properties of windows and doors. It determines the safety of the entire structure, as it indicates the amount of pressure caused by wind that the window or door structure is able to resist without serious damage. The classification of wind-resistant windows and doors is carried out in accordance with PN-EN 14351-1. The wind load resistance of the window is described by two symbols: the number (1-5) which indicates the pressure of wind applied to the product and the letter (A-C) which indicates the amount of accepted deflection.

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Water resistance

It is the capacity to avoid water leakages under wind and rain at the same time. Leakage is defined as the appearance of uncontrolled water (other than condensation) on the inner surface of the product. Obviously, the doors and windows with good waterproof performance can effectively prevent water from entering into their internal structure and – as a result – ensure a longer service life. The classification ranges from Class 0 (no test) to Class 7A for windows and Class 3A for doors.

Uw (U-value)

The window’s heat transfer coefficient. It informs you about the level of thermal insulation. The Uw (U- value) shows how much heat will penetrate 1 m2 of sliding doors in one hour, with a difference between the temperatures on both sides of the doors of one degree. This means that the lower the Uw coefficient, the better the window’s thermal insulation is.

Depth of the frame

A very important dimension, saying a lot about sliding doors quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the sliding doors.

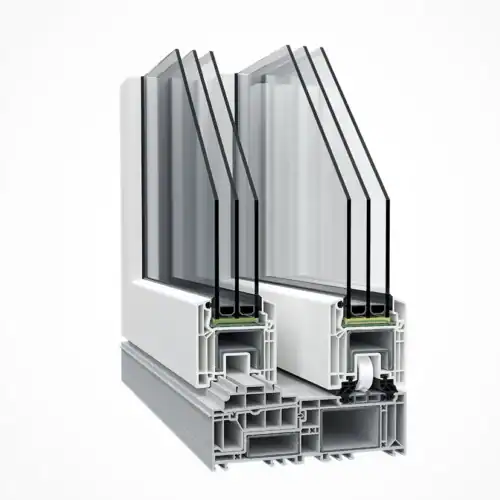

VEKAMOTION 82 is a modern system of lift & slide terrace doors. It is characterised by excellent energy-efficiency thanks to the use of multi-chamber profiles and a warm uPVC threshold (48 mm) with very good thermal insulation. It enables the installation of very large elements with a high proportion of glass and narrow profiles. The standard version of the threshold with the sash has a cross-sectional height of 152 mm, while the frame with the sash gives a total dimension of 163 mm. In addition, the VEKAMOTION 82 window system offers the possibility of installation without a threshold, which contributes to greater comfort and convenience of use.

The VEKAMOTION 82 lift & slide door system uses multi-chamber masking strips that cover the screw connections after installation. Thanks to it, the surfaces are completely smooth, even without caps. The system is characterised by an attractive, modern design that fits perfectly with various architectural styles. It is available in two versions: VEKAMOTION 82 and VEKAMOTION 82 with an aluminum overlays.

VEKAMOTION 82 HST:

Excellent interior lighting: larger panes, narrow profiles
Class A profile with an external wall thickness of 3 mm
Possibility to design 2-, 3- and 4-leaf structures up to 6,5 m wide and 2.7 m high
Maximum leaf area: 6.5 m² (white structures) and 5.5m² (colourful structures)
Maximum leaf weight: 250 kg
High thermal insulation of profiles
Burglary resistance class RC 2
Water resistance in the highest class 9A
Thresholdless installation – the latest generation of warm threshold of 48 mm
The use of the triple-glazed units up to 54 mm wide
The two-stage gasket system used in the sliding leaf area – the system of external gaskets ensures the door is tight under wind and rain load
The fittings with ball-bearing rollers and Teflon slides, which make opening and closing the leaves easy and effortless
Available colours from the RAL palette, wood-like colours, SPECTRAL finish or with aluminum overlays

Opening schemes

Scheme A

Scheme C

Scheme D

Scheme K

Colours

Standard colours

Agate Grey

Aluminium Brushed

Aluminium Brushed Silver

Alux Aluminium Grey

Alux DB

Basalt Grey

Basalt Grey Smooth

Black and Brown

Diamond Blue

Brown

Brushed Brass

Carmine Red

Cobalt Blue

Creamy White

Dark Grey

Dark Grey Silk

Dark Green

Douglas

Emerald Green

Golden Oak

Green

Ivory

Jet Black

Light Grey

Light Oak

Macore

Mahogany

Maroon

Monumental Blue

Monumental Green

Mountain Pine

Navy

Nut

Oregon III

Palisander

Papyrus White

Platinum Crown

Platinum Earl

Platinum-Quartz

Quartz Grey

Quartz Grey Smooth

Red-Brown

Ruby Red

Shaded Douglas

Sheffield Grey Oak

Sheffield Light Oak

Shogun AC

Shogun AD

Shogun AF

Siena PN

Siena PR

Silver Grey

Silver-Grey Smooth

Slate Grey

Slate Grey Smooth

Structural Oak

Swamp Oak

Umbra Ultra Mat

White

Winchester XA

Yellow

Price list

The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include accessories or custom sizes and dimensions. Additionally, each colour change affects the final price of the product in the following way:

Aluminium windows and sliding systems:

The Customer pays 3-5% more for a one-sided coating or two-sided coating.

uPVC windows:

The Customer pays 10-20% more for a one-sided veneer and 25-35% more for a two-sided veneer.

uPVC sliding doors:

The Customer pays 5-10% more for a one-sided veneer and 10-15% more for a two-sided veneer.

The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

One active-leaf door

Size:	4000 x 2100
Triple-glazed Price from:	€ 4224 net

Files to download

HST-85-CROSS-SECTION-WITH-A-THRESHOLD

CROSS-SECTION_HST85

VM82_OPENING-SCHEMES

Frequently Asked Questions

First of all, you should send us your enquiry where you specify your chosen joinery parameters, dimensions and qualities. In order to prepare a quote for you, we need the following details:

Model window/door (aluminium/uPVC) - [any specific U-value is required?]
Width x Height [mm]
Colour from internal/external side
Glazing: double/triple
Eircode (so we can check delivery cost)
Contact details, email address, phone number

In case you want the quote for installation services as well, let us know and specify whether you are interested in a new project or windows replacement. Next, we will provide the personalised quote for the purchase of joinery together with installation costs, delivery and lead-time. Please send all the information and enquiries about our offer to the following e-mail address: [email protected]

We are selling complex products, tailored services and our customers often require a special solution. That's why each of our products is personalised and we do not have the standard price list. Every product is quoted according to individual customer needs. Please send all enquiries about our offer to the following e-mail address: [email protected]

At the moment, the estimated lead time for specific product categories is as follows:

uPVC windows and doors, shutters: up to 7 weeks
Velux roof windows, blinds & accessories: up to 8 weeks
Aluminium windows, doors: up to 7 weeks
Steel doors: up to 8 weeks
Garage Doors: up to 7 weeks

Additionally, for every category, you have to count in 5 days for delivery time.
