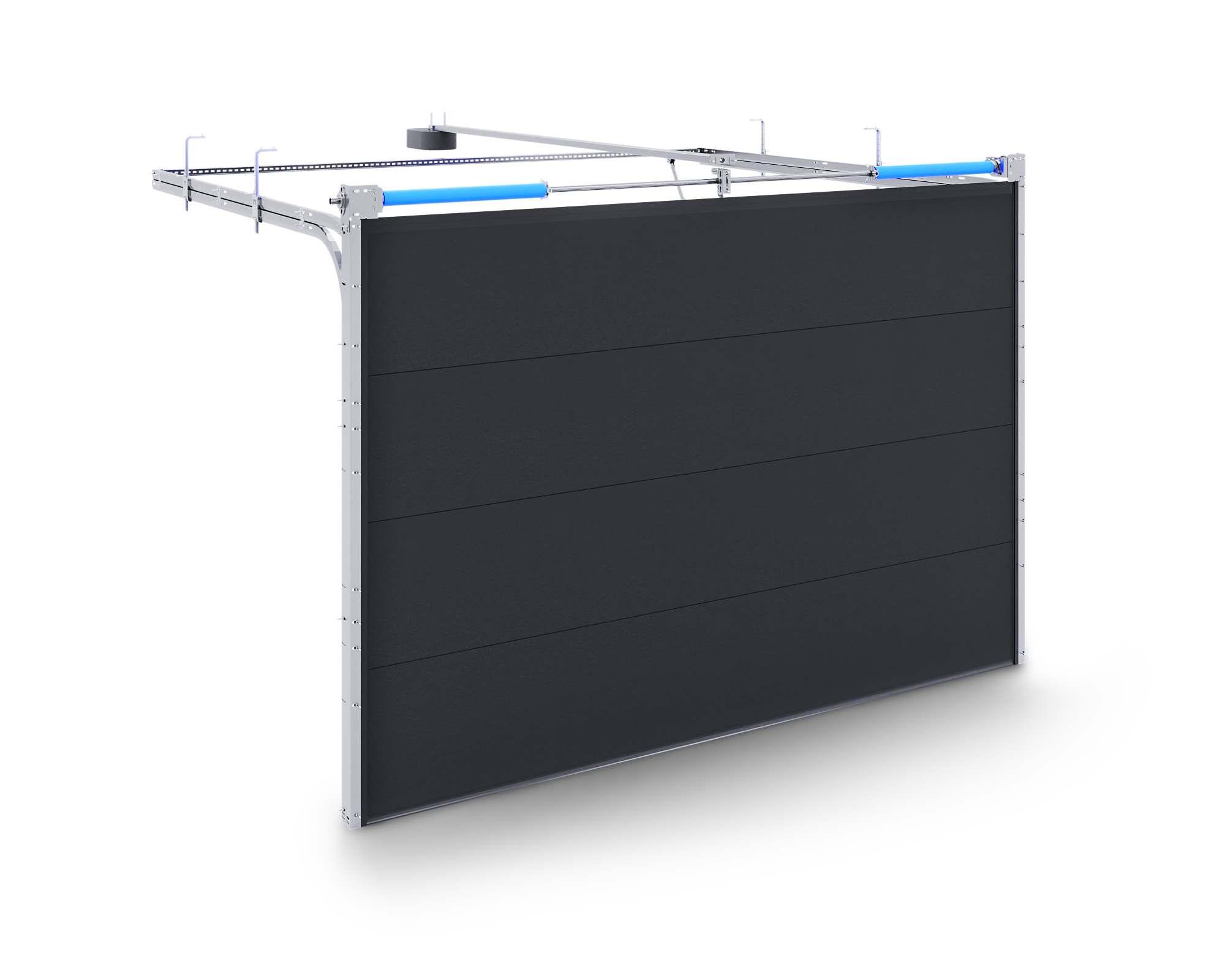

Sectional Garage Doors INFINITI F with torsion springs at the front

Torsion springs are dedicated to large-size gates. They will lift much more weight than the tension springs. The spring technologies used make the door fit perfectly into any garage opening. The gate can be additionally equipped with a pass door on a low or high threshold, an aluminum section or glazings (in the uPVC frames).

Technical specification of the doors:

Maximum width: 5.5 m
Maximum height: 3m
Maximum weight: 195 kg
Minimum dimensions: 75 mm jambs, lintel 200 mm

Max. area of the door: 15m²
Max. lintel height for standard hanging: 350 mm (above 350 mm lintel, installation with the use of angles supplied on request)
Min. building depth without the drive: height + 575 mm
Min. building depth with electric drive:

• for doors up to 2250 mm, height 3150 mm
• for doors up to 2750 mm, height 3750 mm
• for doors up to 3000 mm, height 4750 mm



Benefits:

• Executed with the use of the highest class components and equipped with reliable mounting and security systems.
• Double-sided protection against corrosion – they preserve their original colours, forms and function for many years
• The use of eRSC200 torsion springs at the front
• eRSC200 torsion springs are distinguished by a solid, durable structure and safety of use
• The simplified assembly: fewer parts and pre-assembled components
• The torsion spring system is dedicated to large-size gates
• Type of drive: manual or automatic
• Panels used to build sectional gates have a thickness of 40 mm – gaskets in guides and the core of the panel made from polyurethane foam ensure the highest level of thermal isolation in the gate
• Panels available with the following types of surfaces: smooth or stamped (low, high or Woodgrain ribbing)
• Veneer colours of panels are the same as the ones used on the Salamander, Aluplast and Gealan window profiles
• The panels are available in all the colours of the RAL palette

Sectional Garage Doors INFINITI F with front torsion springs are available in three different packages:

INFINITI Quiet

• the gate movement is smooth and quiet
• aesthetics and functionality at the highest level
• the gate harmonises with the rest of the noise protection joinery
• comfort for the most demanding customers – minimised noise of the operating gate

INFINITI Safe

• optimal safety for all household members and your car
• ensures operation during longer power cuts
• the gate harmonises with the rest of joinery, which is equipped with safety elements
• designed anti-burglary security

INFINITI Premium

• complete accessories for a quiet and safe gate
• satisfies the values of design and aesthetics
• minimised noise of the operating gate
• guarantees the safety of the residents of the house
