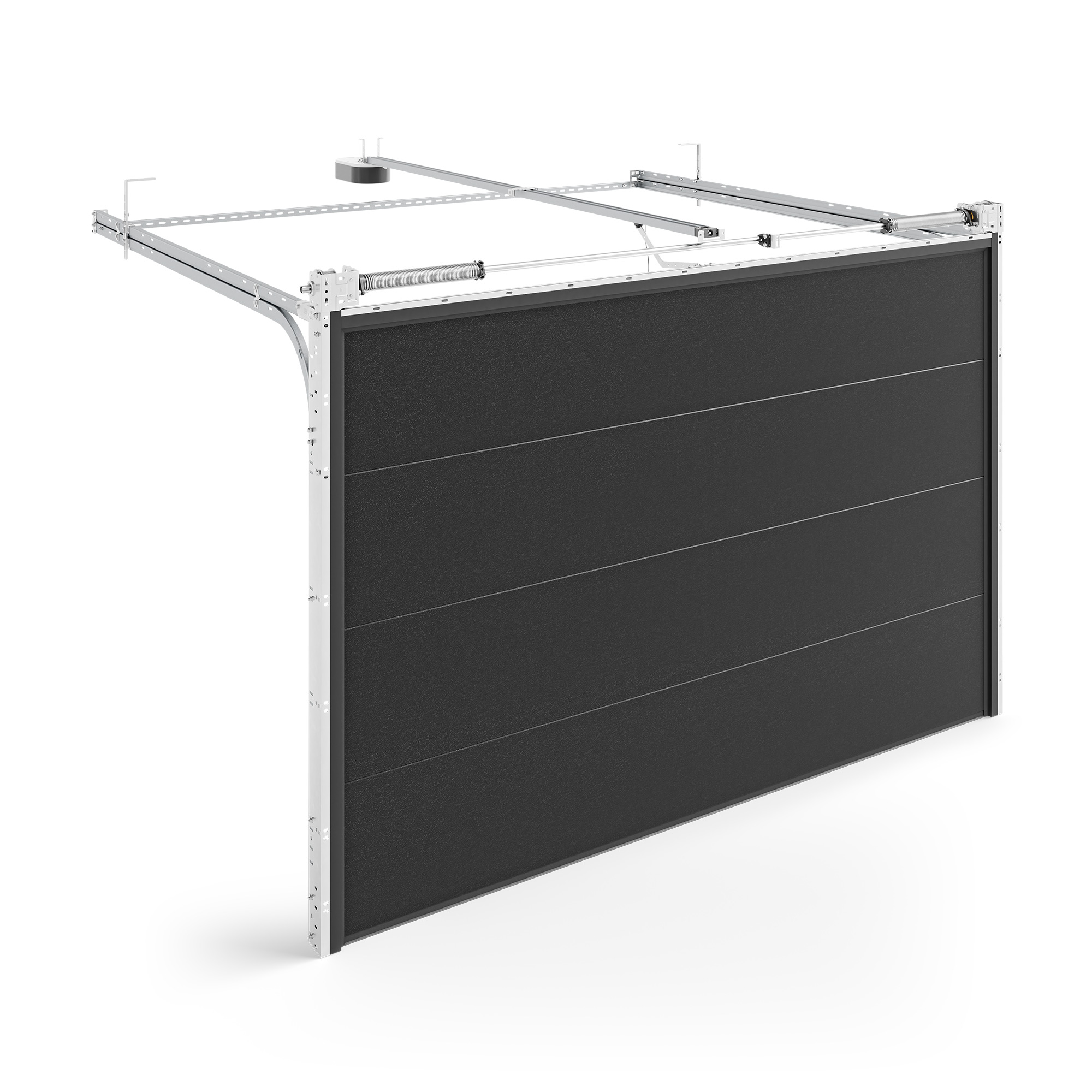

Sectional Garage Doors INFINITI THERMO F with torsion springs at the front

Sectional garage doors characterised by effective thermal insulation. They are equipped with 60-millimetre-thick steel panels filled with insulating material that significantly reduce the thermal transmittance of the door curtain. It results in improved garage thermal performance and lower energy losses for the whole building.  The innovative double-lip gaskets with thermal chamber ensure that heat is not lost through thermal bridges. Thanks to the torsion spring system mounted at the front, it is possible to lift the largest curtains among the available solutions, providing an excellent solution for large garages. Convenient operation is ensured by electric drives controlled by wire, radio remote control, smartphone app, or smart home system.

Technical specification of the doors:

• Maximum width: 6 m
• Maximum height: 3m
• Maximum weight: 295 kg
• Minimum dimensions: jambs 100 mm, lintel 200 mm
• Max. area of the door: 18m²



Benefits:

• Executed with the use of the highest class components and equipped with reliable mounting and security systems
• Type of drive: automatic
• Panels used to build sectional gates have a thickness of 60 mm – they have the same thickness throughout their entire length, guaranteeing the highest thermal performance at every point of the door
• Front torsion springs
• The torsion spring system dedicated to large-size gates
• A system of double-lip gaskets with an additional thermal chamber protecting against heat loss
• 0.81 W/m²K – heat transfer coefficient (U-value) given for INFINITI Thermo sectional doors with dimensions of 5000 x 2500 mm
• 0.89 W/m²K – heat transfer coefficient (U-value) given for INFINITI Thermo sectional doors with dimensions of 2500 x 2250 mm
• The specially designed shape of the panels reduces the risk of crushing fingers
• The drive’s amperometric sensor reacts to contact with obstacles
• The spring breakage protection ensuring that even in the event of a malfunction, the door will not close uncontrollably
• Panels painted in RAL colours or veneered

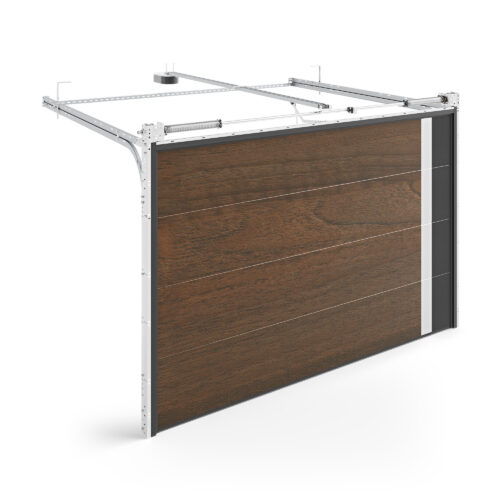

• Smooth or high embossed panels (with decorative inlays made of chrome-plated steel – Inox)

Sectional Garage Doors INFINITI THERMO F with front torsion springs are available in three different packages:

INFINITI Quiet

• the gate movement is smooth and quiet
• aesthetics and functionality at the highest level
• the gate harmonises with the rest of the noise protection joinery
• comfort for the most demanding customers – minimised noise of the operating gate

INFINITI Safe

• optimal safety for all household members and your car
• ensures operation during longer power cuts
• the gate harmonises with the rest of joinery, which is equipped with safety elements
• designed anti-burglary security

INFINITI Premium

• complete accessories for a quiet and safe gate
• satisfies the values of design and aesthetics
• minimised noise of the operating gate
• guarantees the safety of the residents of the house
