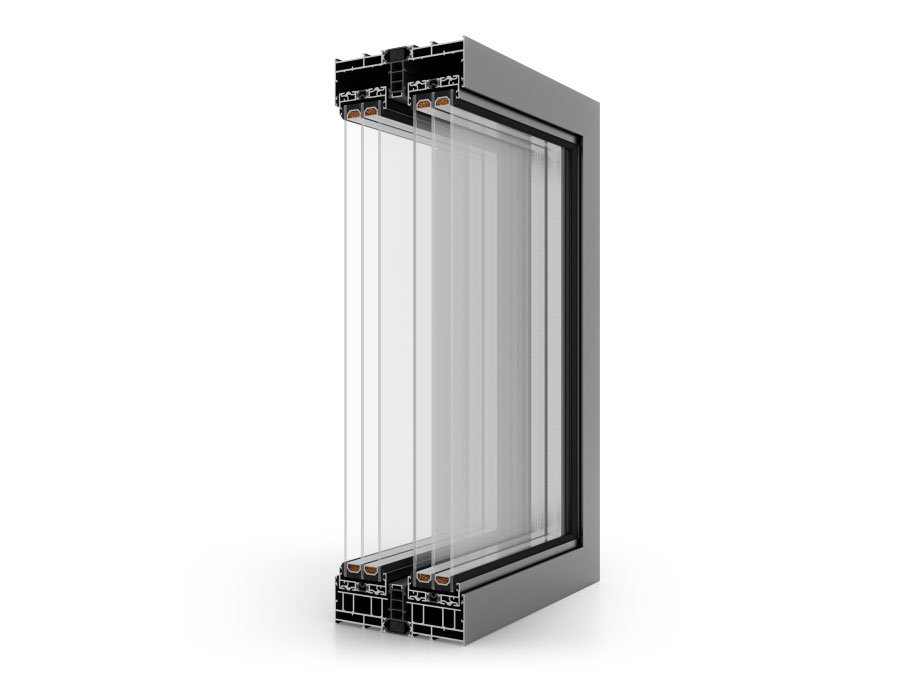

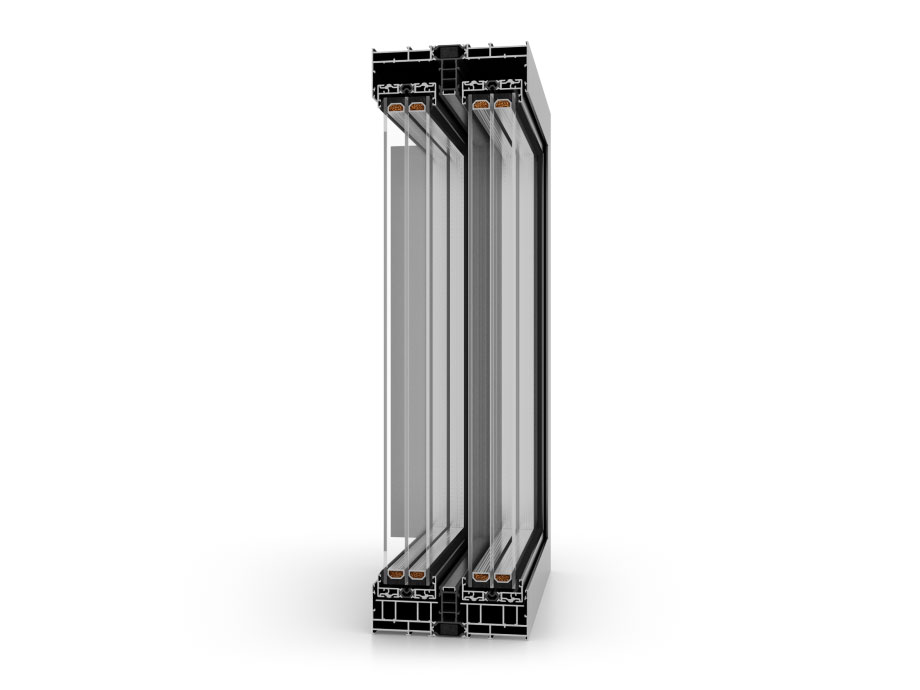

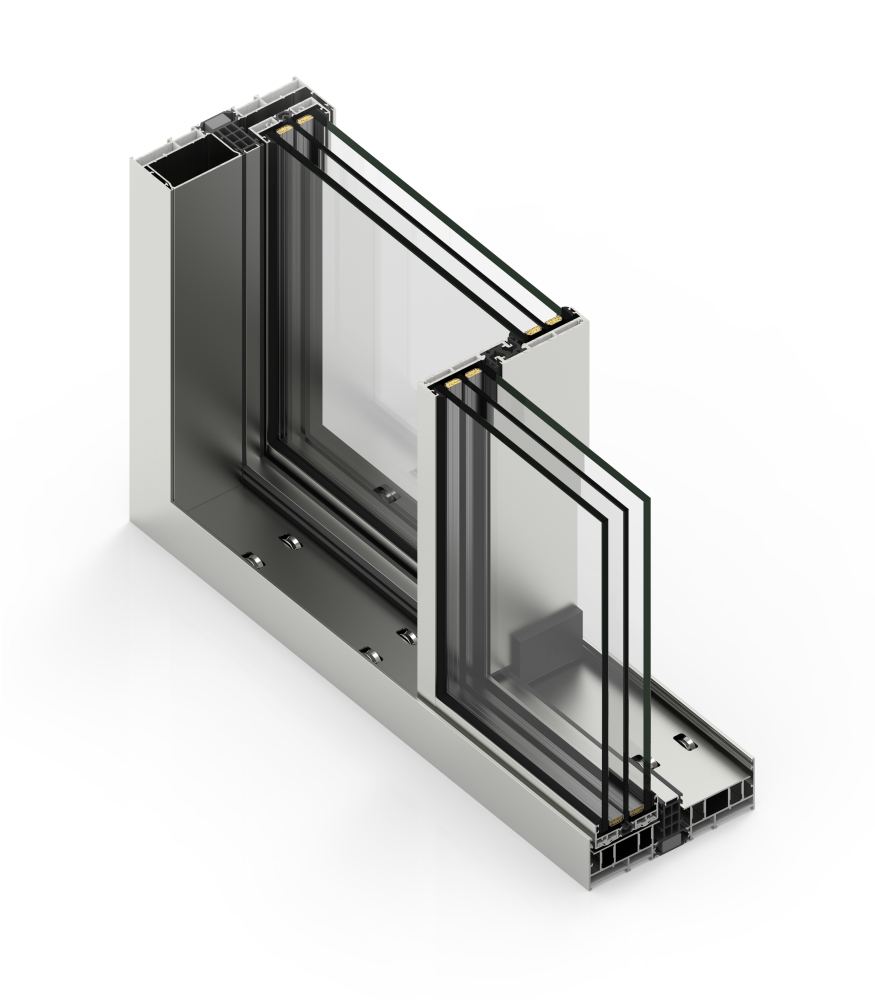

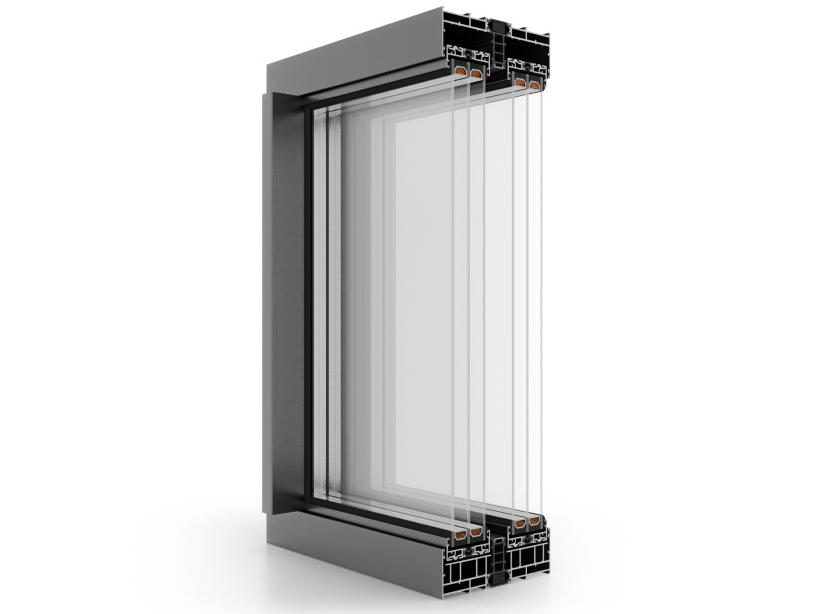

Aluminium Sliding Doors COR Vision Plus

Ratings
Brand: Cortizo
What you get
  • Large dimensions with a glass surface of 94%
  • A triple glazing unit up to 54 mm
  • Outstanding thermal and acoustic performance
View specification
Lead time: up to 8 weeks Find out more

Guarantee included at purchase Find out more

Specifications

BrandCortizo
Depth of the frame [mm]180 - 278
Maximum thickness of the glazing unit [mm]54
U-value1.1
Specifications - Read more

Thickness of the glazing unit

A glazing unit is a structure consisting of two, three, or even four panes of glazing separated from each other by a distance frame, sealants and vapour-absorbing gas (argon \ krypton). The thickness of the glazing unit is the overall measurement, from the outside glass surface to the inside glass surface. The average double glazing thickness is about 24 mm while triple-glazed windows are 42 – 48 mm in thickness on average. The number of panes in a glazing unit affects the improvement of the U-value parameter

Uw (U-value)

The window’s heat transfer coefficient. It informs you about the level of thermal insulation. The Uw (U- value) shows how much heat will penetrate 1 m2 of sliding doors in one hour, with a difference between the temperatures on both sides of the doors of one degree. This means that the lower the Uw coefficient, the better the window’s thermal insulation is.

Depth of the frame

A very important dimension, saying a lot about sliding doors quality and functionality. The depth affects the sound insulation, thermal insulation (U-value) and stiffness of the structure. To put it simply: the bigger the depth, the warmer the sliding doors.

A minimalist sliding system specially suitable for large dimensions. It is characterised by outstanding thermal and acoustic performance. This sliding door system allows maximum brightness with almost invisible aluminium section. It is also available in a motorised version.

COR Vision Plus:

Price list

“The prices shown in the Price List are for white, double-glazed and/or triple-glazed products and do not include changes in colours, accessories, dimensions, etc. Each change affects the final price of the product. The presented price offer is for information purposes only. If you want to know the detailed quote on your individual order, please contact our Sales Team. We will get back to you with the final price that is tailored to your specific needs – free of charge!

Colours

RAL 9016
RAL 9006
RAL 7001
RAL 9007
RAL 3004
RAL 7016
DB 703
RAL 8019
Show all (8)
